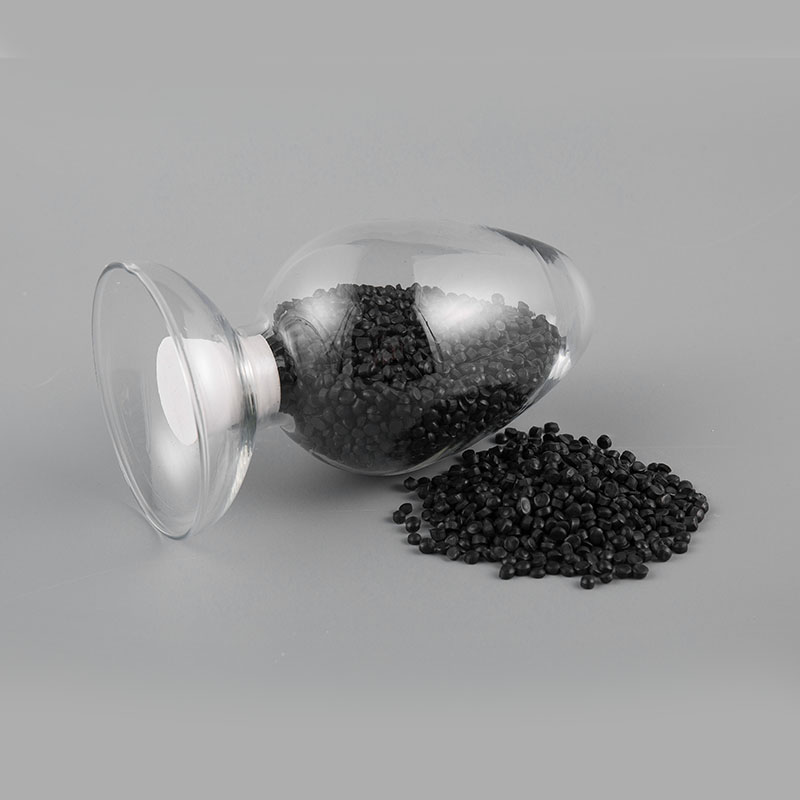

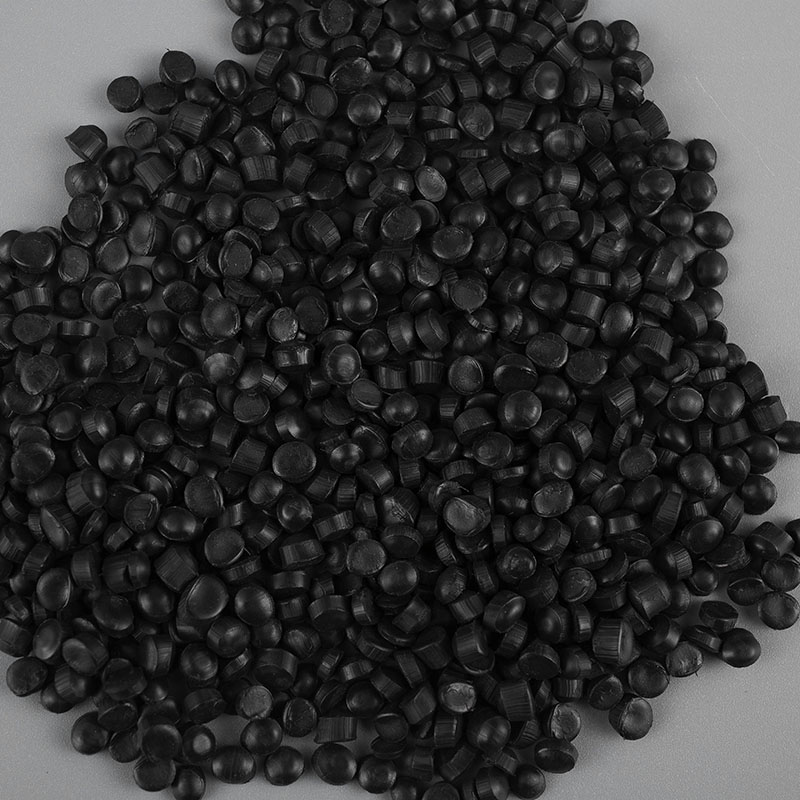

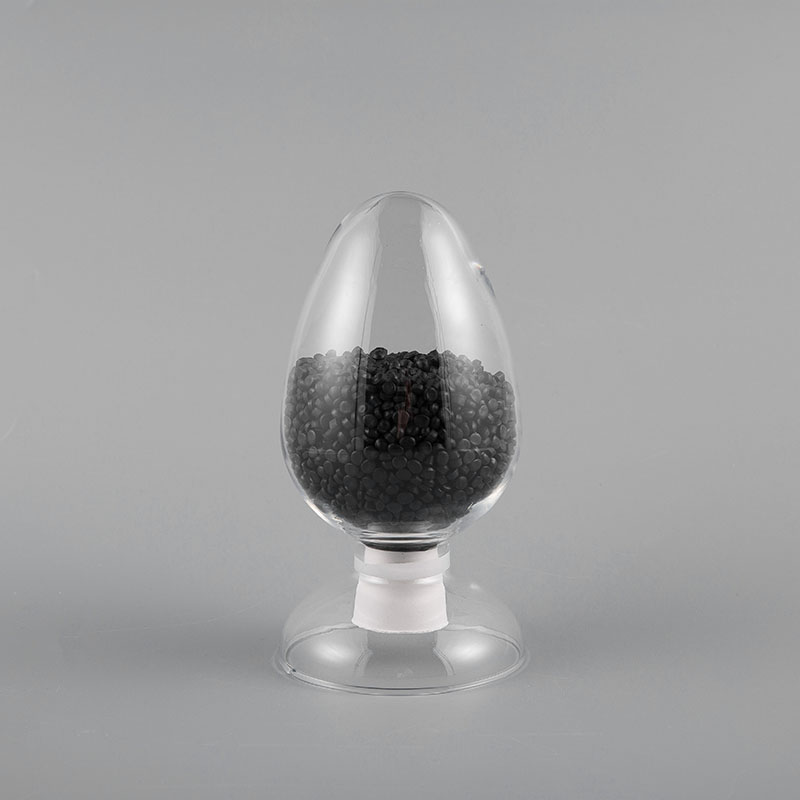

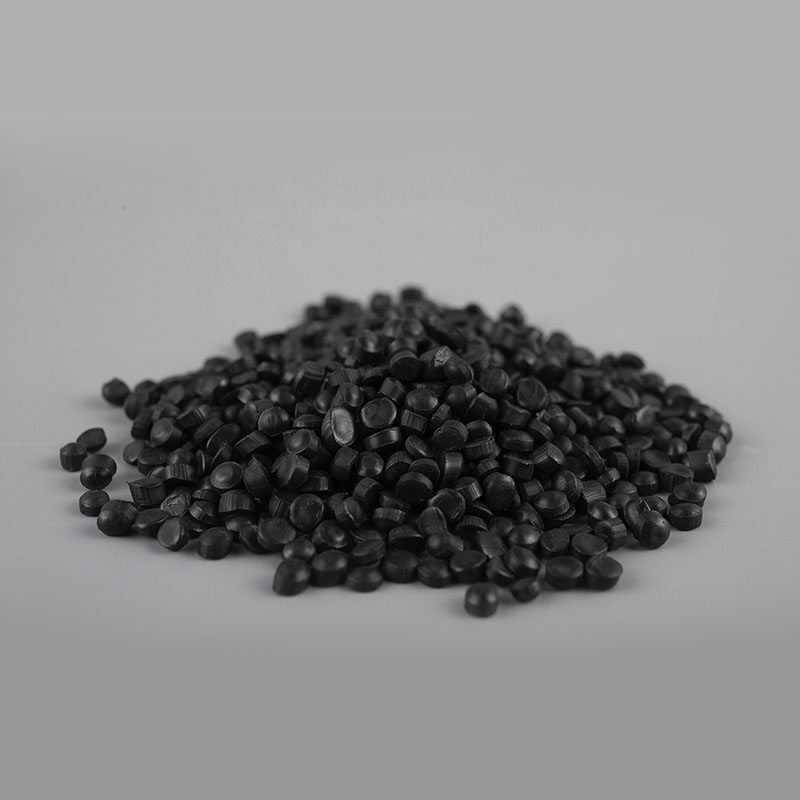

ML-H9001A/B/C 90℃ Halogen-Free Low Smoke Flame Retardant Class A Sheath Compound

The ML-H9001A/B/C series is a high-performance, thermoplastic Low Smoke Zero Halogen (LSZH) sheath compound and masterbatch engineered specifically for wire and cable insulation and jacket applications. Designed to meet the stringent Class A flame retardancy standards, this material is formulated using advanced polyolefin resins combined with high-purity inorganic flame retardants. It operates reliably at a continuous temperature of 90℃, maintaining its mechanical integrity and electrical insulation properties under thermal stress. In the event of a fire, the compound produces minimal smoke density and zero corrosive halogen acid gases, significantly improving visibility and safety in enclosed environments. The ML-H9001 series provides a balanced profile of extrusion stability, oil resistance, and mechanical toughness, facilitating high-speed production on standard extrusion lines.

ML-H9001A/B/C 90℃ Halogen-Free Low Smoke Flame Retardant (LSZH) Class A Sheath Compound

Core Advantages

Flame Propagation Control: Achieves Class A rating in vertical bundle flame tests, effectively inhibiting the spread of fire along cable runs.

Environmental Safety: Zero halogen content ensures no toxic or corrosive gases (such as HCl) are released during combustion, protecting both human life and sensitive electronic equipment.

Thermal Stability: Rated for long-term operation at 90℃, exceeding the performance of standard 70℃ LSZH compounds.

Optimized Processability: Controlled rheological properties ensure a smooth surface finish and consistent diameter during high-speed cable extrusion.

Technical Characteristics

Physical Property

Standard / Requirement

Tensile Strength

≥ 10.0 MPa

Elongation at Break

≥ 150%

Hot Deformation (90℃)

≤ 50%

Low Temperature Brittleness

≤ -30℃

Smoke Density (Dm)

≤ 150 (Non-flaming / Flaming)

Halogen Acid Gas Content

0 mg/g (PH ≥ 4.3, Conductivity ≤ 10µs/mm)

Application Scenarios

Public Infrastructure: Used in subway systems, railway stations, and airport terminals where low smoke emission is mandatory for evacuation safety.

High-Rise Construction: Applied as sheathing for power cables, control cables, and data cables in commercial and residential skyscrapers.

Data Centers and Telecommunications: Protects fiber optic and copper cabling systems while preventing corrosive damage to servers during thermal incidents.

Marine and Offshore: Suitable for shipboard wiring and offshore platforms requiring Class A flame retardancy and moisture resistance.

Storage and Handling Guidelines

Moisture Control: LSZH materials are hygroscopic. Store in a dry, ventilated warehouse. If the package is opened or stored for an extended period, the compound must be pre-dried at 65-75℃ for at least 2-4 hours before extrusion.

Temperature Regulation: Avoid exposure to direct sunlight or temperatures exceeding 35℃ during storage to prevent premature aging or agglomeration of the pellets.

Extrusion Parameters: Recommended extrusion melt temperature ranges between 150℃ and 175℃. Avoid excessive shear heat or temperatures above 180℃ to prevent the decomposition of inorganic flame retardants.

Packaging Integrity: Ensure pallets are kept stable and moisture-proof liners remain sealed until the point of use to maintain the specified dielectric properties.

Halogen-free and low-smoke products

1. Halogen-free and low-smoke cable material for power cables

The halogen-free low-smoke sheath material for power cable is made of EVA and POE as the main substrates, adding inorganic flame retardants, lubricants, antioxidants, etc., and is processed by mixing. The performance of this kind of product meets the requirements of GB/T 32129 standard, and the finished cable products can meet the requirements of GB/T 19666 standard, of which B1 grade products can meet the requirements of GB 31247 B1 level, and the drip can reach d0. The product has the characteristics of halogen-free acid gas emission and low smoke generation and is a safe and environmentally friendly flame-retardant polyolefin material that meets ROSH and REACH standards.

Grade, name, and use

trademark	Product name	density	Ki Index	use
ML-H9001A	90°C halogen-free, low-smoke flame retardant Class A sheath material	1.54	40	The power is sheathed by Class A sheathing material and is burned in bundles through Class A without an oxygen barrier
ML-H9001B	90°C halogen-free, low-smoke flame retardant class B sheath material	1.50	36	The B-grade sheath material of the power rope is burned in bundles by Class B, and the oxygen barrier layer is burned in bundles by Class A
ML-H9002B	90°C halogen-free, low-smoke flame retardant class B sheath material	1.52	36	Class B sheath material for control cables, which can be burned in bundles by multi-core control cables Class B
ML-H9001C	90°C halogen-free, low-smoke flame retardant grade C sheath material	1.49	32	Class C sheath material for power junction, which is burned in bundles by Class C
ML-H9001G	Halogen-free, low-smoke flame retardant oxygen barrier inner protective material	1.60	45	The inner protective material of the oxygen insulation layer for power cables is burned in a high-grade bundle with the outer protection
ML-H9001B1	90°C halogen-free, low-smoke flame retardant B1 sheath material	1.54	40	The B1 sheath material of the power cable is burned in bundles through the B1 level with the oxygen insulation layer
ML-J9001	90°C halogen-free low-smoke flame-retardant insulating material	1.49	34	Insulating material, 2.5mm2 through a single vertical burning

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation, and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry, and ventilated warehouse.
