Wholesale ULH-75 75℃ UL Standard CM/CMR Grade Flame Retardant Network Cable Sheath Compound Suppliers, Factory

ULH-75 75℃ UL Standard CM/CMR Grade Flame Retardant Network Cable Sheath Compound

ULH-75 75℃ UL Standard CM/CMR Grade Flame Retardant Network Cable Sheath Compound is based on polyvinyl chloride resin as the main component. Through careful blending of plasticizers, stabilizers and efficient flame retardants and other additives, it ensures that the cable can withstand the high temperature environment of 75℃. It can still work stably and has flame retardant properties. It has good electrical properties, mechanical strength and wear resistance, can effectively protect cables from damage to the external environment, and is widely used in various types of flame-retardant network cables.

High flame retardant PVC sheath material for communication and security cables

UL high flame retardant PVC sheath material for network cable is made of polyvinyl chloride resin as the base material, adding plasticizers, stabilizers, flame retardants and other additives, and is prepared by mixing, plasticizing and granulating, which has aging resistance, low temperature resistance, flame retardant performance, and the surface is delicate/matte/grinding density The sand effect can be customized. The product meets ROHS2.0, REACH, NO-P, PAHS Class II, BPA-free and other environmental protection requirements.

Model, brand, name, implementation standard and use

Model

trademark

name

Enforce the standard

use

ULH-75 CM

3026

75°C UL standard CM flame retardant network cable sheath material

UL444、

UL1666、

UL1685

UL standard communication cables

ULH-75CMR

3027

75°C UL standard CMR grade flame retardant network cable jacket material

Mechanical, physical and electrical properties

Pilot project	unit	Standard value
Pilot project	unit	ULH-75 CM	ULH-75 CMR
Shore hardness	Shore A/15 Sec	Sec. 93±2	Sec. 93±2
density	g/cm³	1.50±0.03	1.55±0.03
tensile strength	MPa	≥13.8	≥13.8
Elongation at break	%	≥100	≥100
Aging conditions	--	100°C*240H	100°C*240H
Tensile strength retention	%	≥85	≥85
Elongation at break Retention	%	≥50	≥50
Low-temperature bending	--	-20°C*4H, no cracking	-20°C*4H, no cracking
Oxygen index	%	≥32	≥35

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse.

Coming From China, Marketing To The World.

Hangzhou Meilin New Materials Technology Co., Ltd. is China Wholesale ULH-75 75℃ UL Standard CM/CMR Grade Flame Retardant Network Cable Sheath Compound Suppliers and ULH-75 75℃ UL Standard CM/CMR Grade Flame Retardant Network Cable Sheath Compound Factory, we were established in July 1994 (formerly known as Zhejiang Lin'an Hongyan Plastic Factory). The company has two factories located at 619 Linglongshan Road and 259 Xingyu Street, Lingqiu Street, Linglong Industrial Park, Lin'an District, Hangzhou City. The registered capital of the company is 75 million yuan, covering an area of over 18000 square meters and a building area of over 30000 square meters. Currently, modern industrial factories and 18 advanced automated production lines have been built. The new factory area will be produced in 2021, making it the cleanest and most beautiful professional cable material manufacturer in the entire region—agreement conditions.

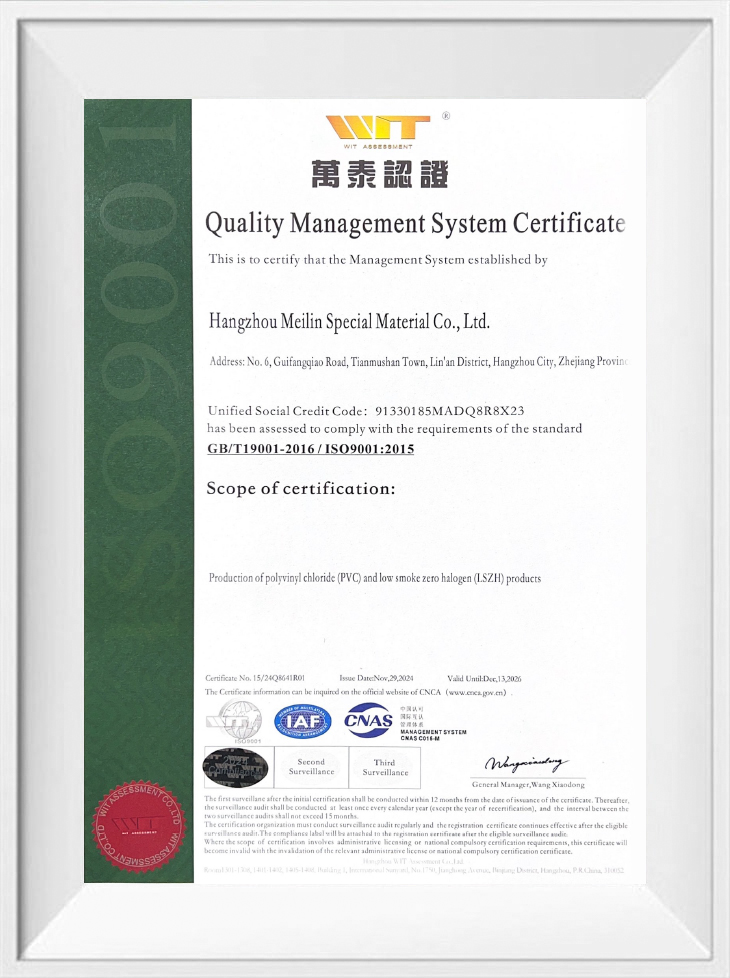

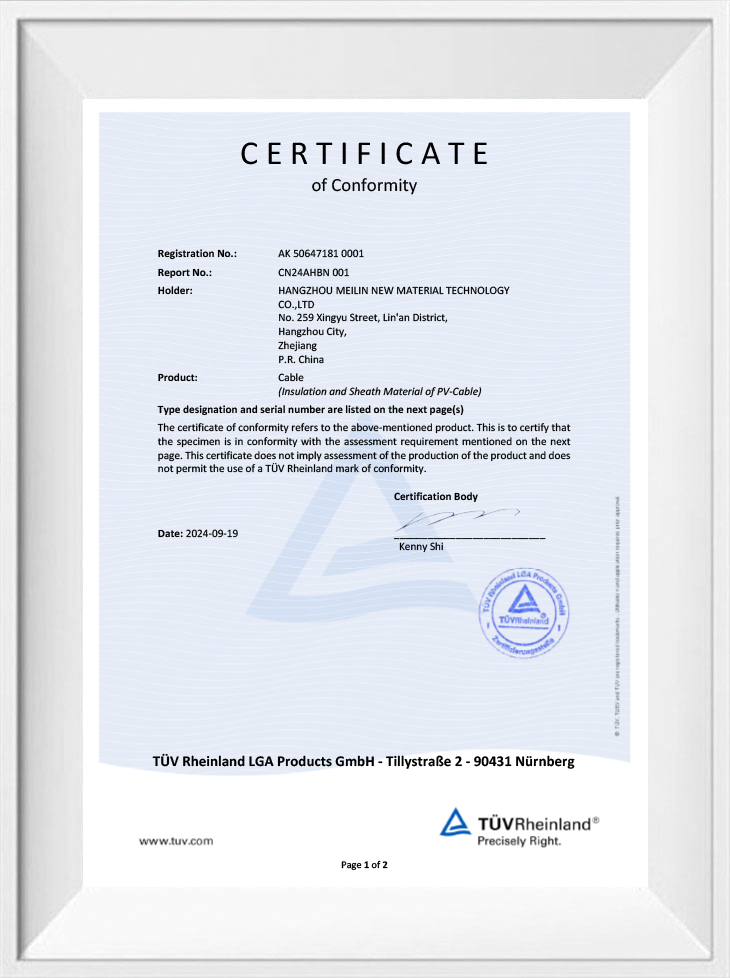

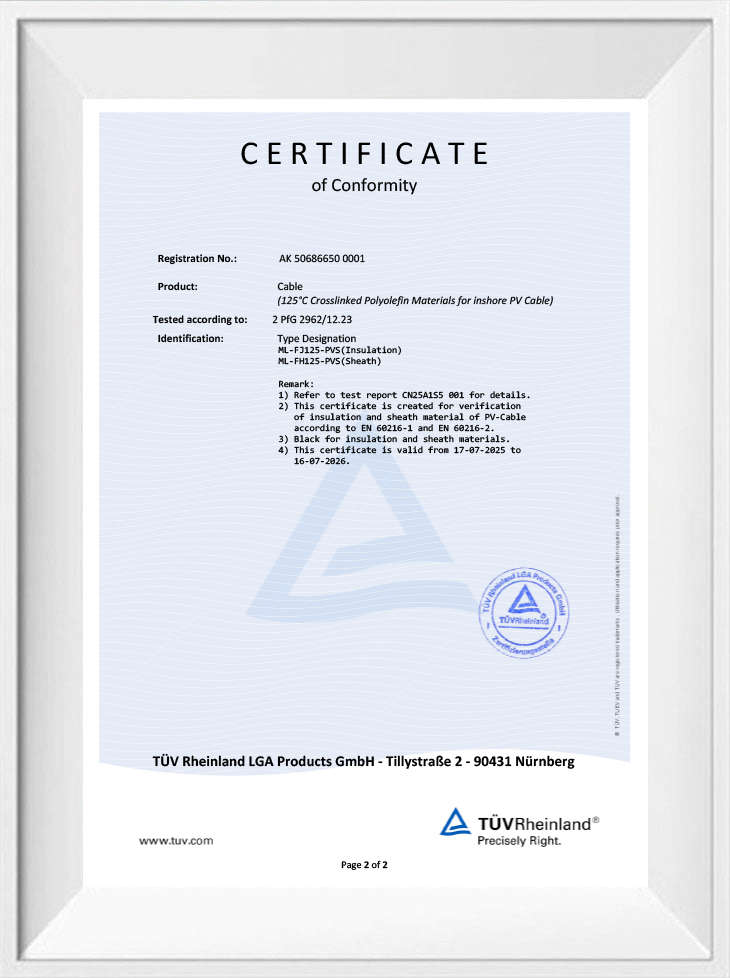

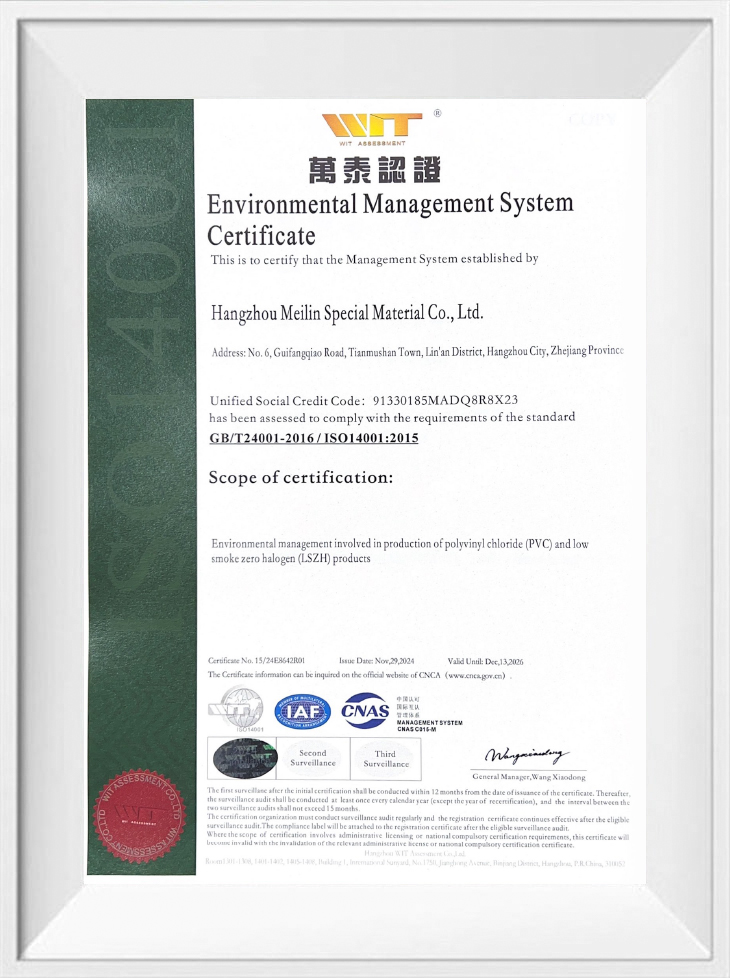

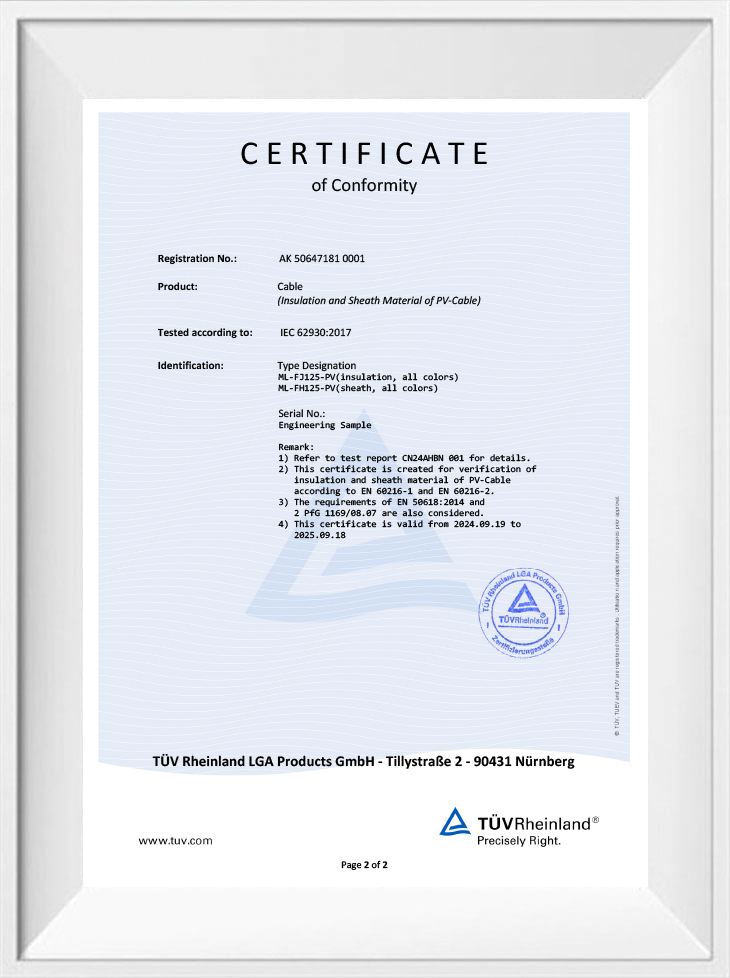

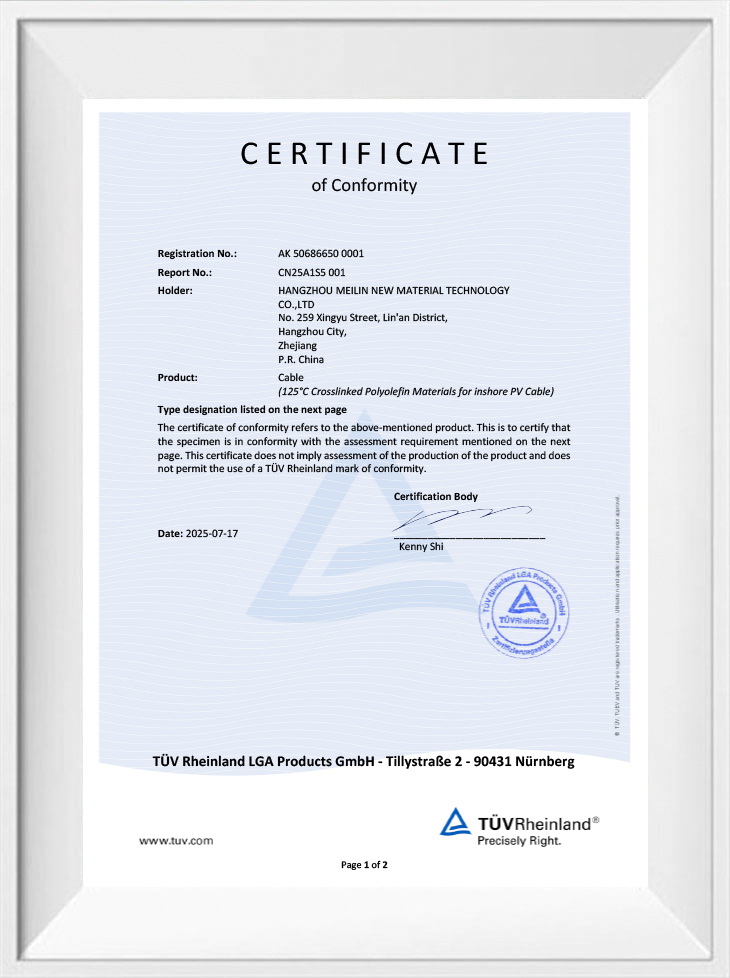

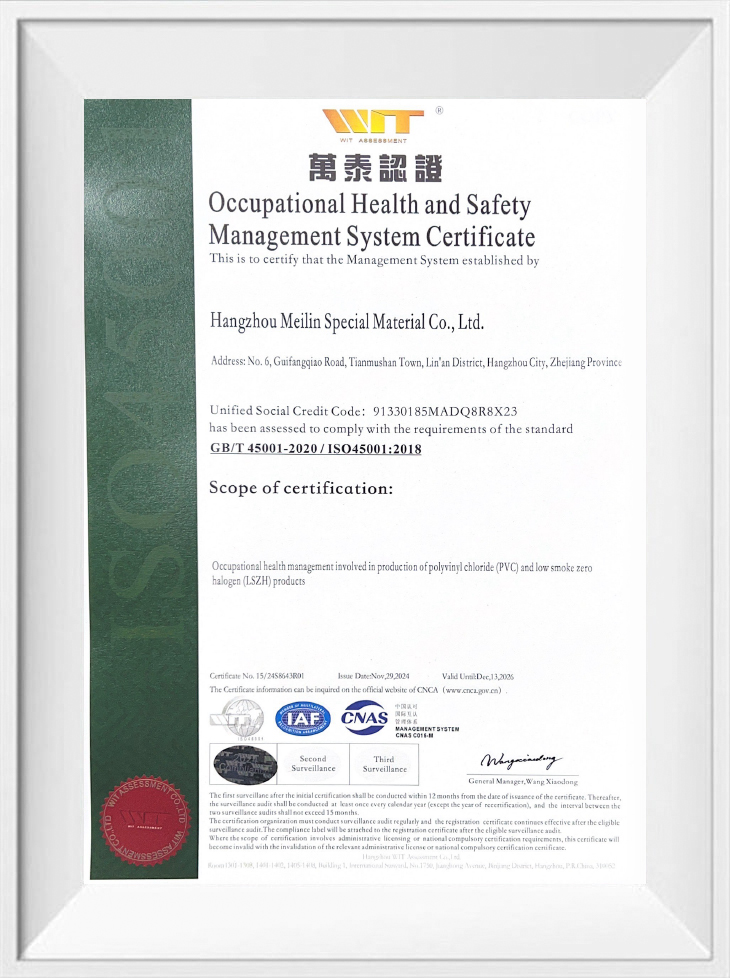

Certifications
