Wholesale NY/ZH-90 90℃ Oil Resistant PVC Flame Retardant Soft Sheath Plastic Suppliers, Factory

NY/ZH-90 90℃ Oil Resistant PVC Flame Retardant Soft Sheath Plastic

NY/ZH-90 90℃ Oil Resistant PVC Flame Retardant Soft Sheath Plastic has oil resistance and flame retardant properties. It can withstand temperatures up to 90°C and is not corroded or damaged by oily substances. It has flame retardant properties and the plastic material is soft and durable. It is suitable for a variety of occasions that require oil resistance and flame retardant protection, such as the automotive industry, petrochemical industry and other fields.

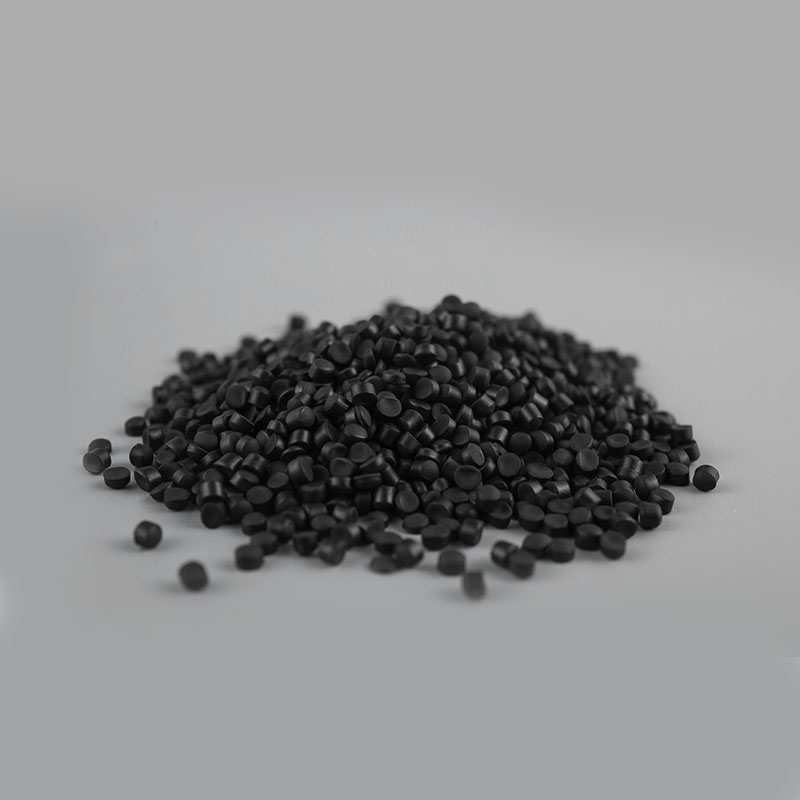

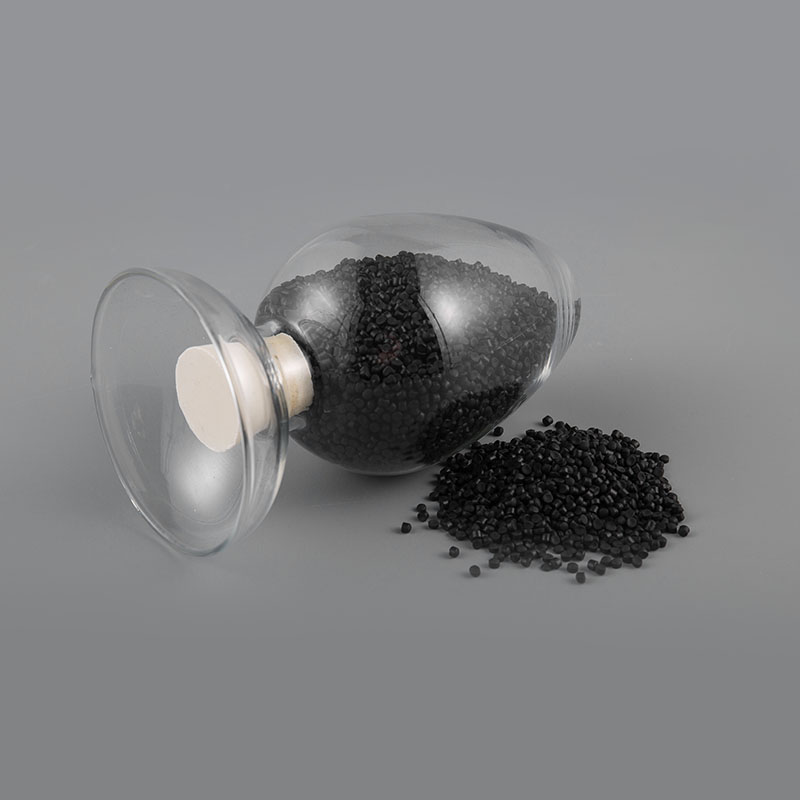

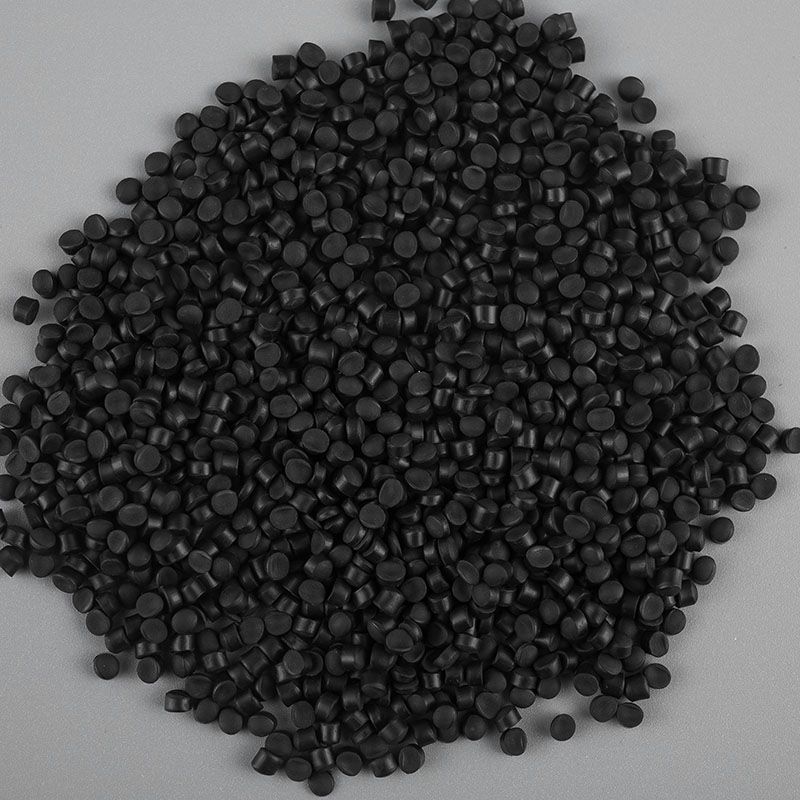

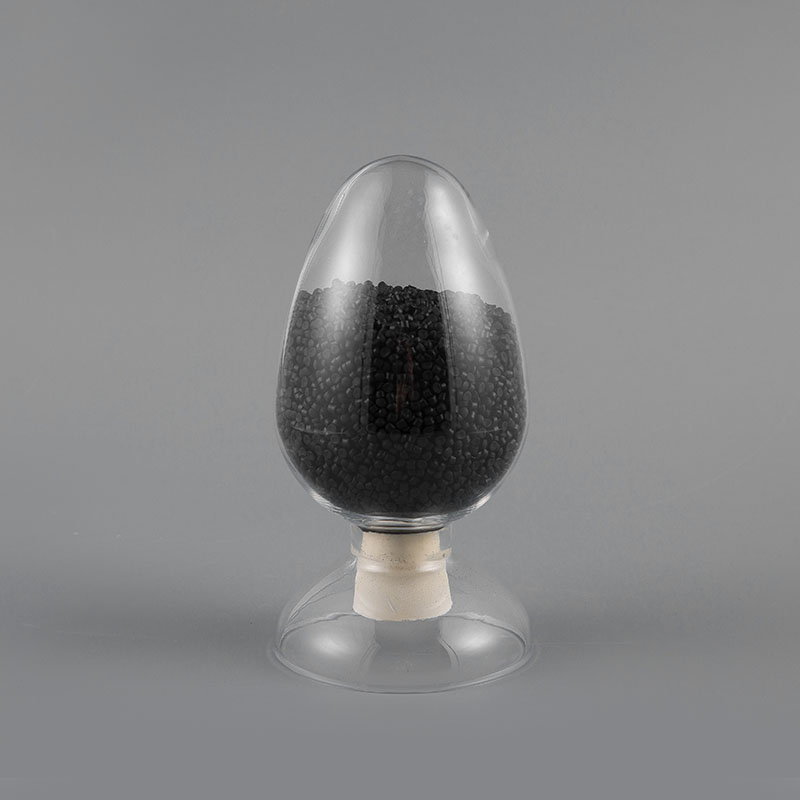

Flame retardant PVC sheath material for wire and cable is a granular material prepared by mixing, plasticizing and granulating with polyvinyl chloride resin as the base material and adding plasticizers, stabilizers, flame retardants and other additives.

Model, brand, name, implementation standard and use

Model	trademark	Maximum core operating temperature (°C)	name	Enforce the standard	use
ZH-70	7031	70	70°C PVC flame retardant soft layer plastic	GB/T8815-2008	Core working temperature 70°C flame retardant PVC wire and cable sheath plastic
ZHR-70	7032	70	70°C PVC flame retardant soft layer plastic		Core working temperature 70°C flame retardant PVC flexible wire and cable layer layer plastic
NY/ZH -90	9031	90	90°C PVC flame retardant soft layer plastic		Core working temperature 90°C flame retardant PVC power cable sheath layer plastic

Note: The relative density index and color are determined by the supply and demand sides through negotiation

Mechanical, physical and electrical properties

Pilot project	unit	Standard value
Pilot project	unit	7031	7032	9031
Tensile strength	≥MPa	15.0	12.5	16.0
Tensile strain at break	≥%	180	200	180
Impact embrittlement temperature	≤℃	-25	-30	-40
Volume resistivity at 20°C	≥Ω.m	1.0 X10⁸	1.0 X10⁸	1.0 X10⁹
Dielectric strength	≥MV/m	18	18	18
Thermal deformation	≤%	50	65	40
200°C thermal settling time	≥min	50	60	80
Oxygen index	%	26~36	26~32	26~36
Heat-aging properties
Thermal aging temperature	℃	100±2	100±2	100±2
Thermal aging time	h	168	168	240
Tensile strength after aging The maximum rate of change in tensile strength	≥MPa	15.0	12.5	16.0
	≤%	±20	±20	±20
Tensile strain at break after aging The maximum rate of change of tensile strain at break	≤%	180	200	180
	≤%	±20	±20	±20
Loss of quality	≤g/m²	23	25	15
Oil resistant temperature				100±2℃
Oil resistance time				24h

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	140	160	170	175	180	175

Marking, packaging, transportation and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse.
