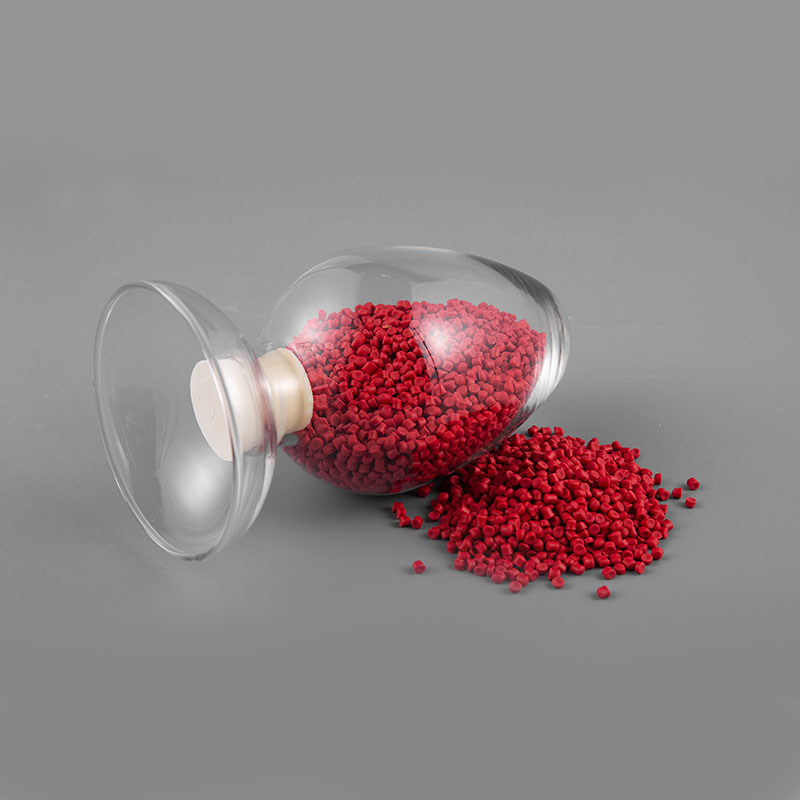

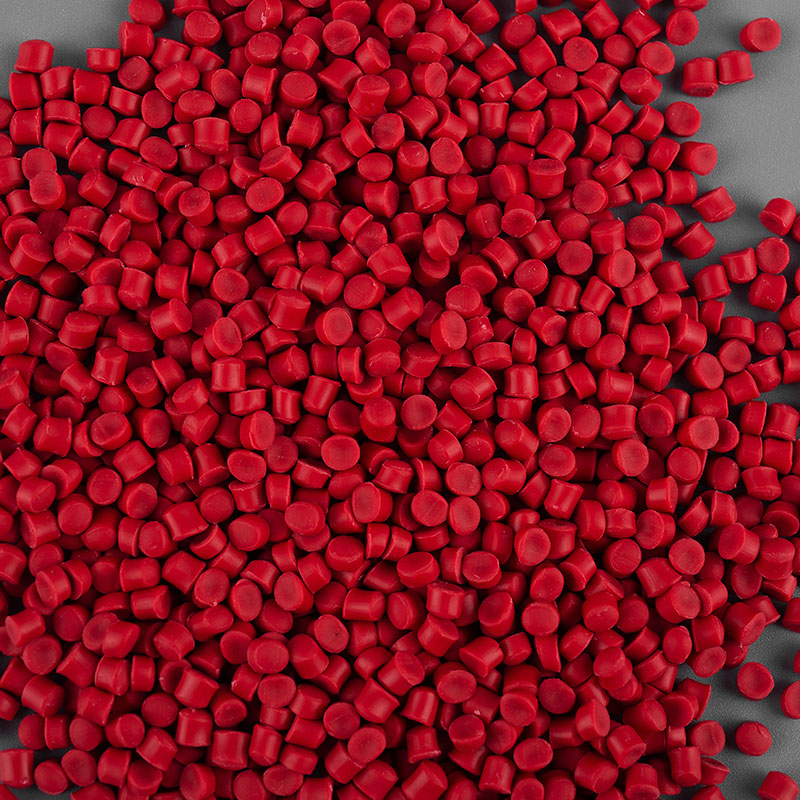

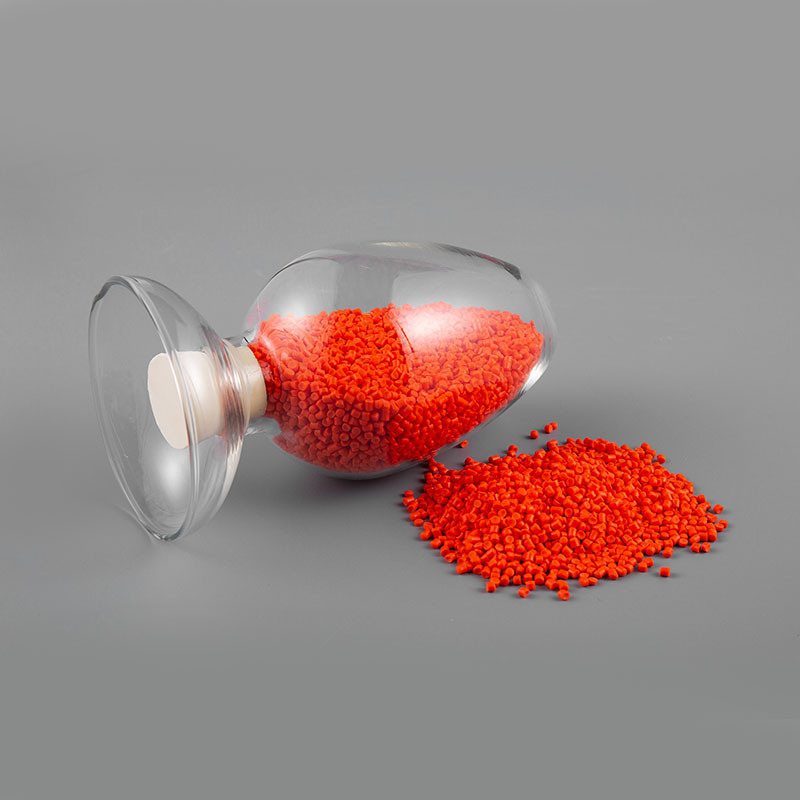

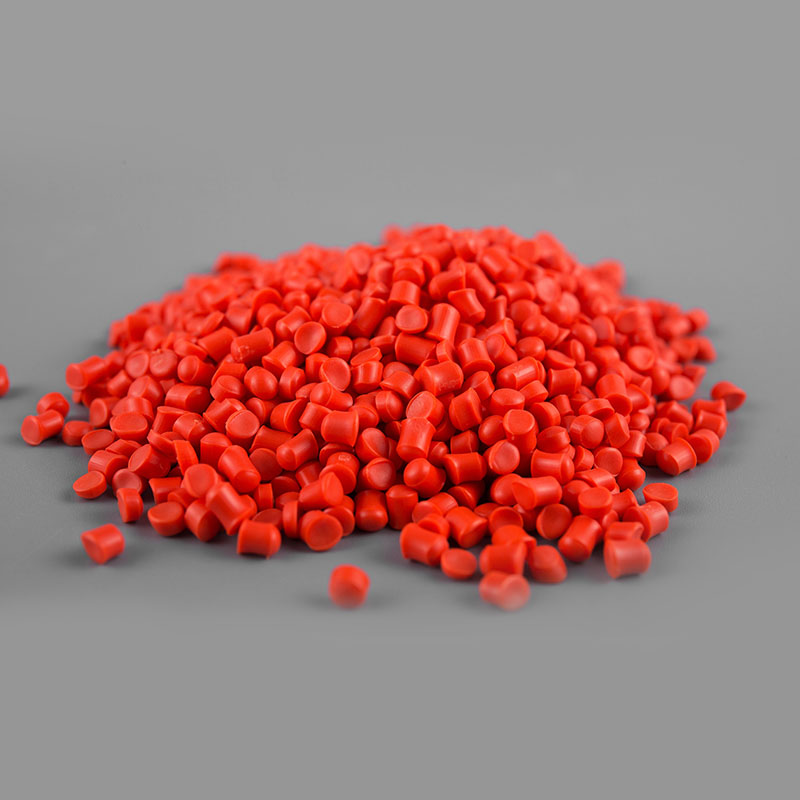

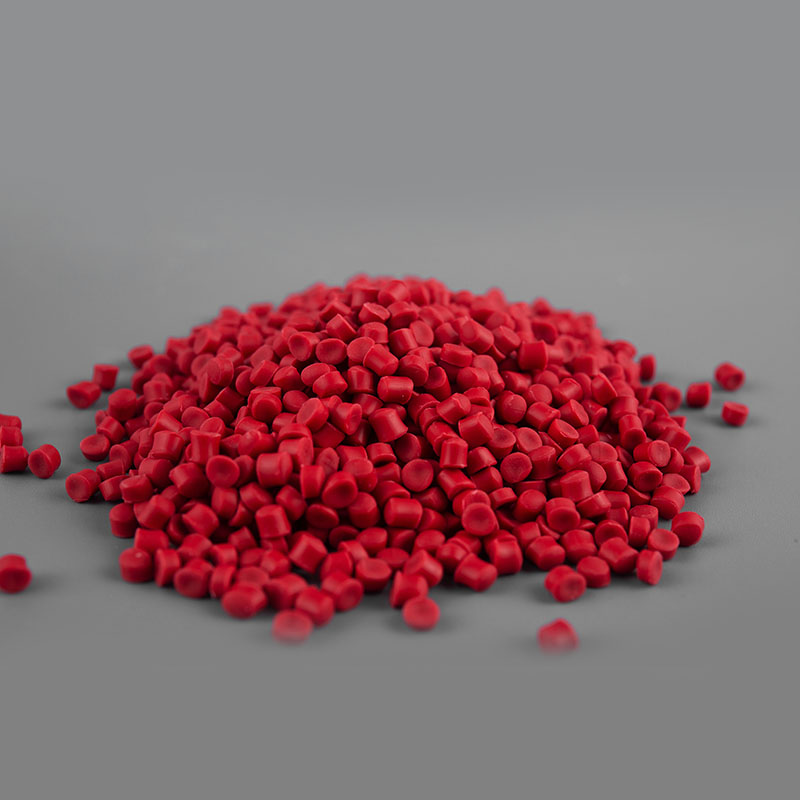

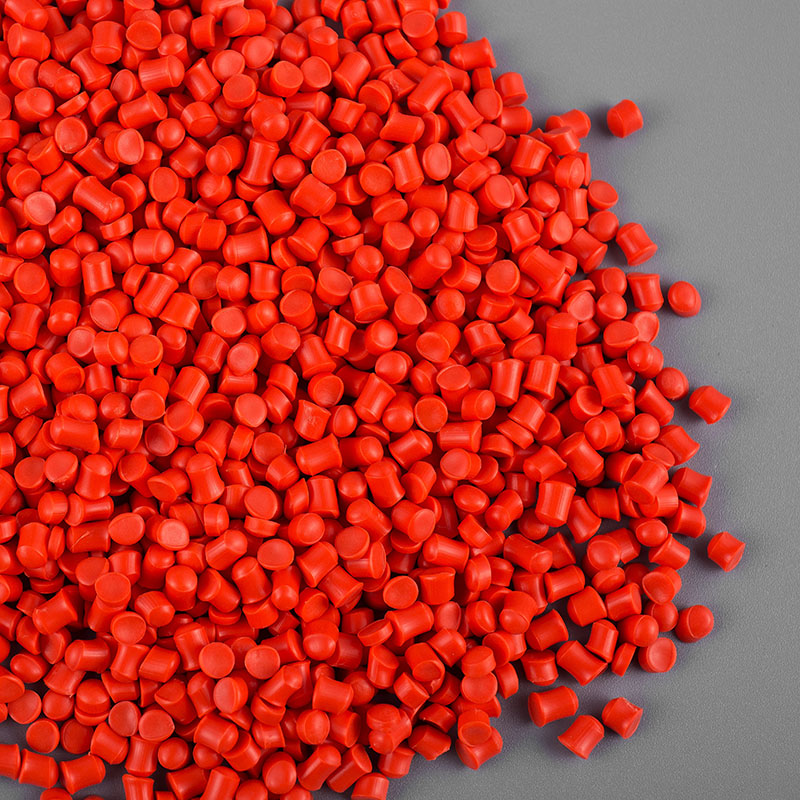

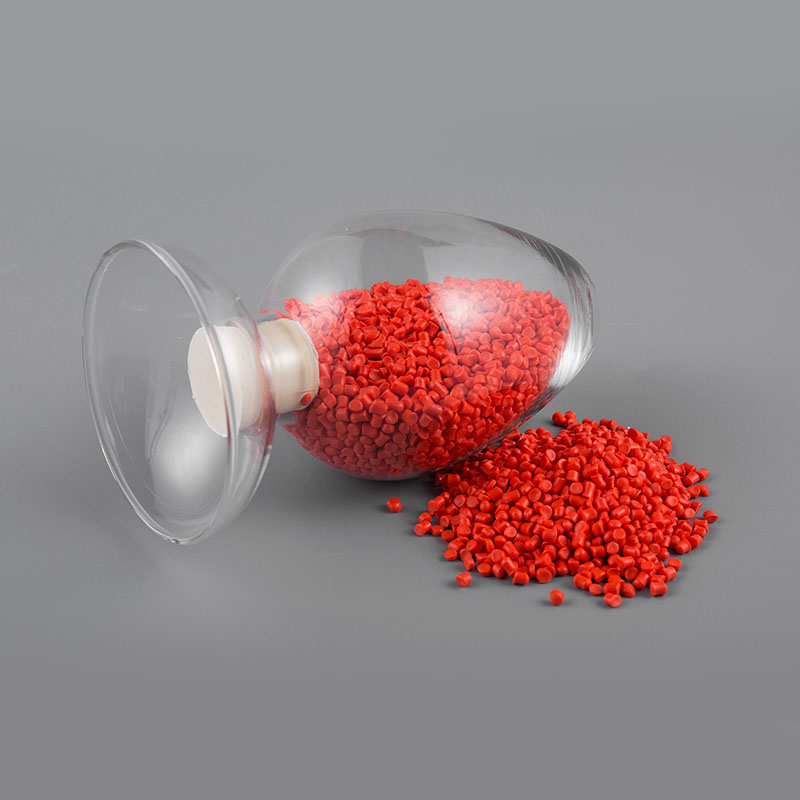

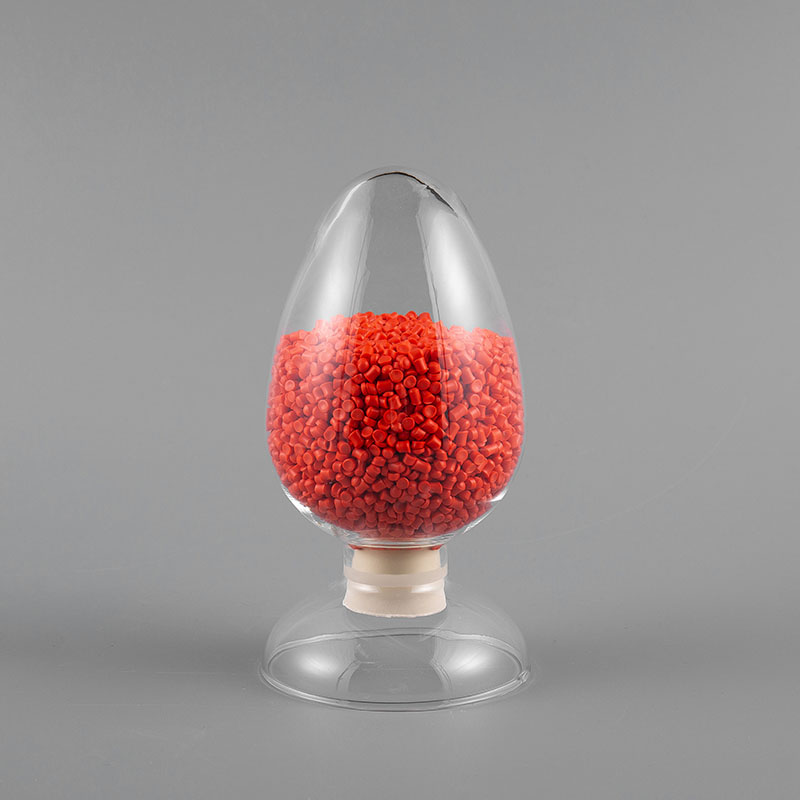

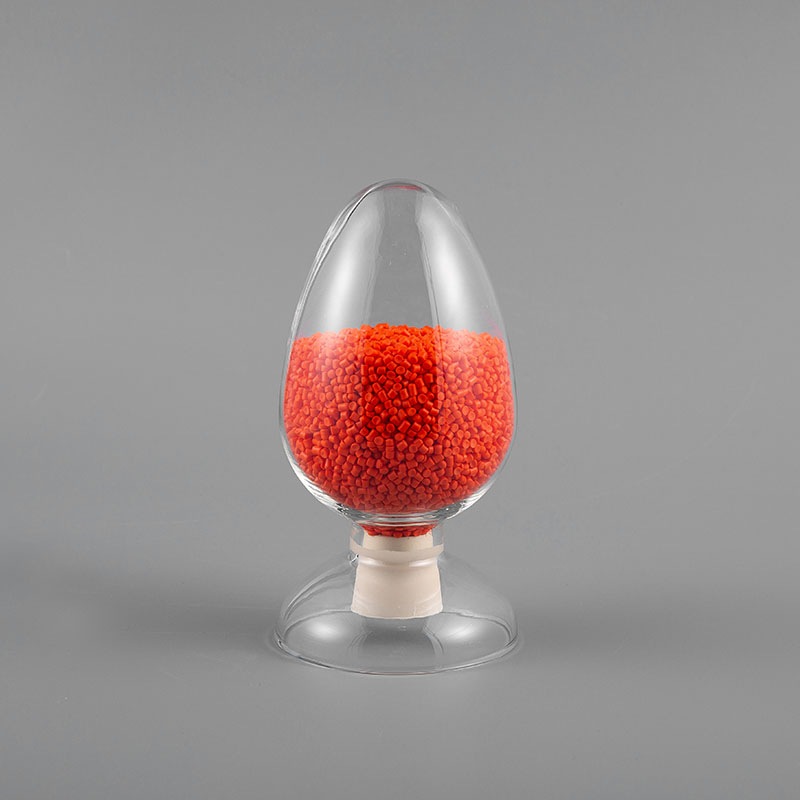

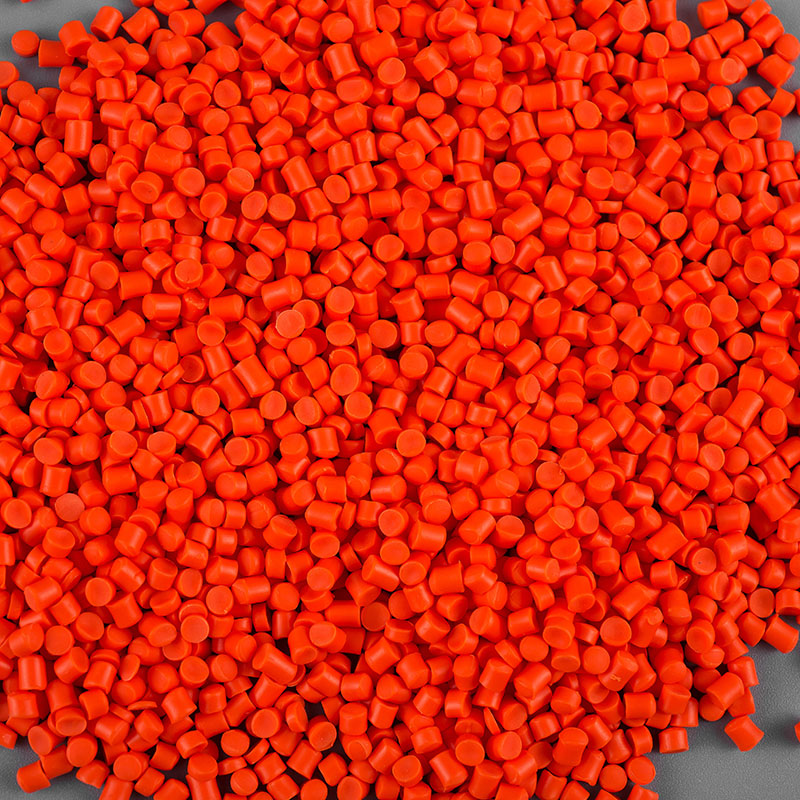

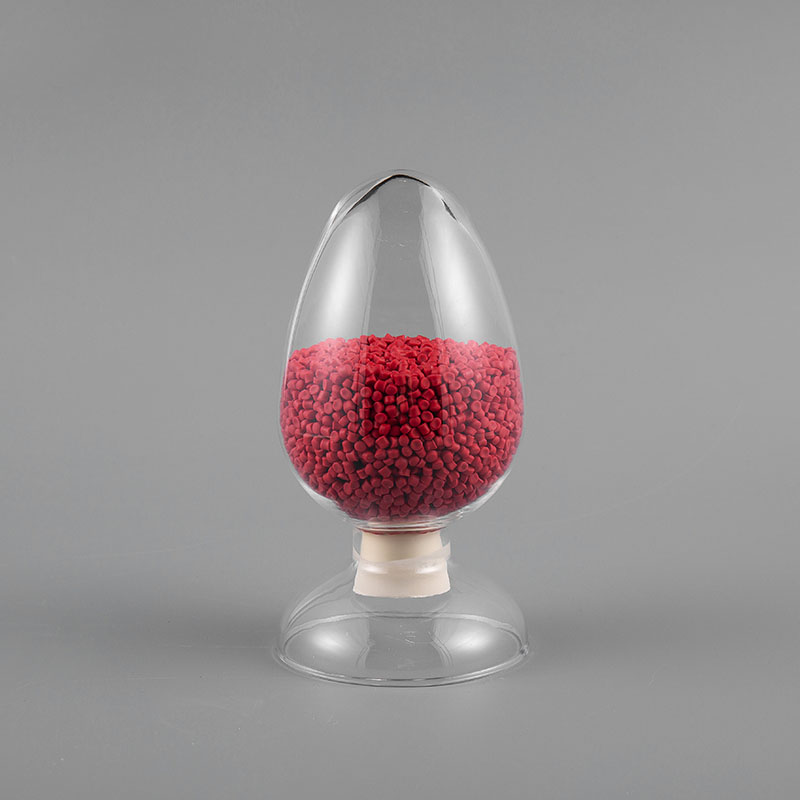

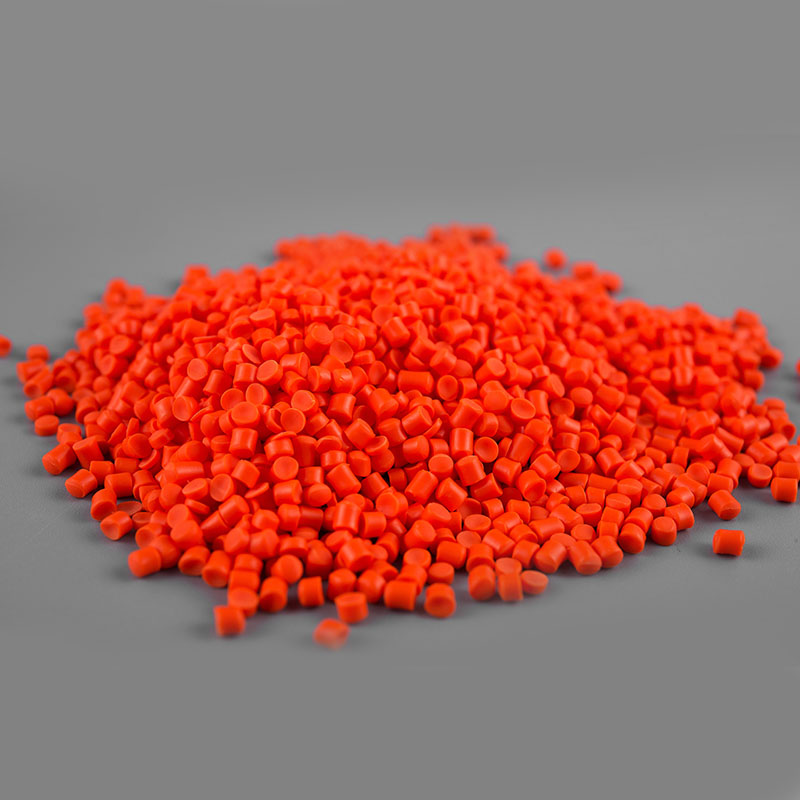

V-90 90℃ Australian Standard PVC Insulation Compound

V-90 90℃ Australian Standard PVC Insulation Compound is a high-quality cable insulation material, specially designed to meet the requirements of Australian standards. It can work continuously and stably in a high temperature environment of 90°C, maintaining electrical insulation properties. It has good mechanical strength and wear resistance, effectively preventing the cable from physical damage during use. 90℃ Australian standard PVC insulation material is widely used in various cable manufacturing, especially in fields that have strict requirements on cable insulation performance.

PREV：5V-90 90℃ Australian Standard PVC Sheath CompoundNEXT：No next article
Contact Us
V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound
  • V-90 90℃ Australian Standard PVC Insulation Compound

International Standard Cable Compound

Australian/New Zealand Standard

Insulating and sheathing materials for electric cables

Model, brand, name, execution standard, and purpose

Model Name

Execution standards

V-90

90 ℃ Australian standard PVC insulation material

AS/NZS 3808:2020

5V-90

90 ℃ Australian standard PVC sheath material

UV/5V-90

90 ℃ Australian standard UV-resistant PVC sheath material



Mechanical and electrical properties

 Pilot project

unit

Standard value

V-90

5V-90

UV/5V-90

Shore hardness

Shore A/

15 Sec

90±3

89±3

89±3

Density

g/cm³

1.42±0.03

1.42±0.03

1.42±0.03

Tensile strength

MPa

≥12.5

≥12.5

≥12.5

Elongation at break

%

≥150

≥150

≥150

Aging condition

--

115℃*504H

115℃*504H

115℃*504H

Tensile strength retention

%

≥75

≥75

≥75

Elongation at break retention rate

%

≥65

≥65

≥65

Thermogravimetric condition



115℃*120H

115℃*120H

115℃*120H

Thermal mass loss

mg/cm²

≤2.5

≤2.5

≤2.5

Heating deformation

--

120℃

Deformation rate≤50%

121℃*2000g*1H，

Deformation rate≤50%

121℃*1H，

Deformation rate≤50%

20℃ Volume resistivity

Ω·m

≥1.0*1011

--

--

720h/1008hUV resistance test

--

--

--

Pass
