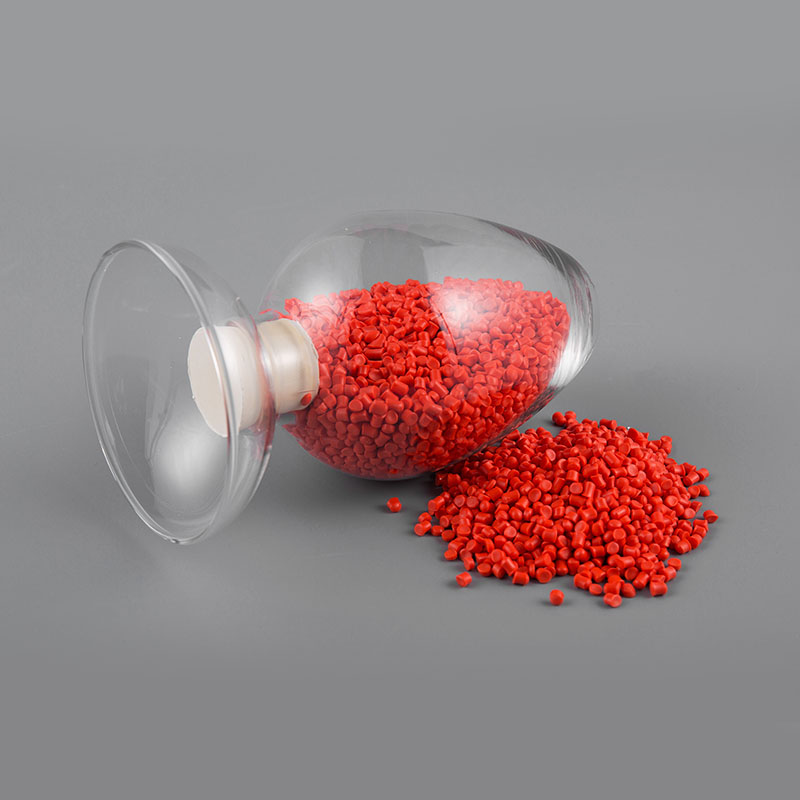

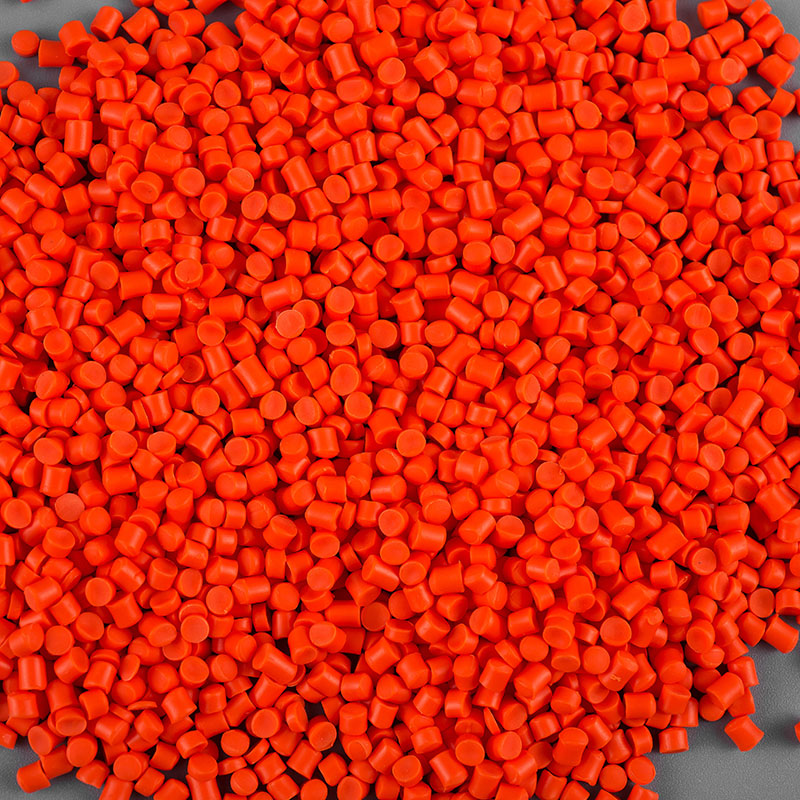

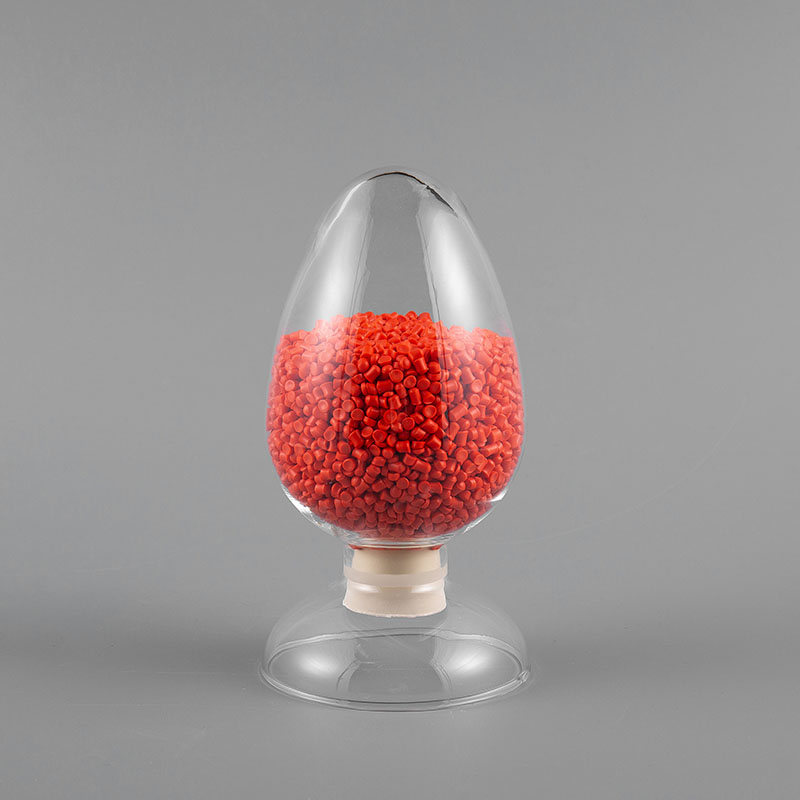

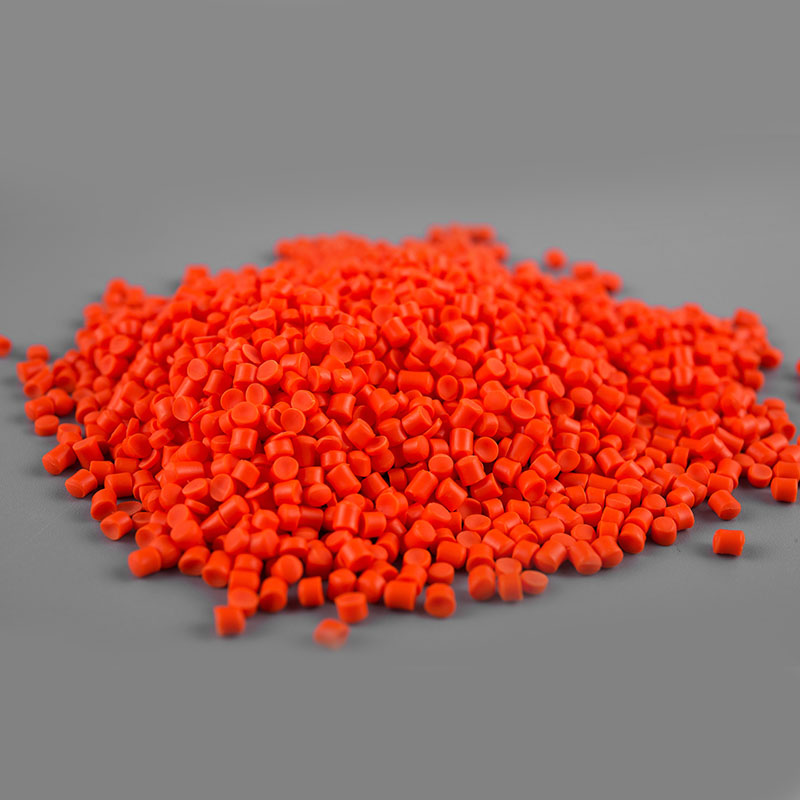

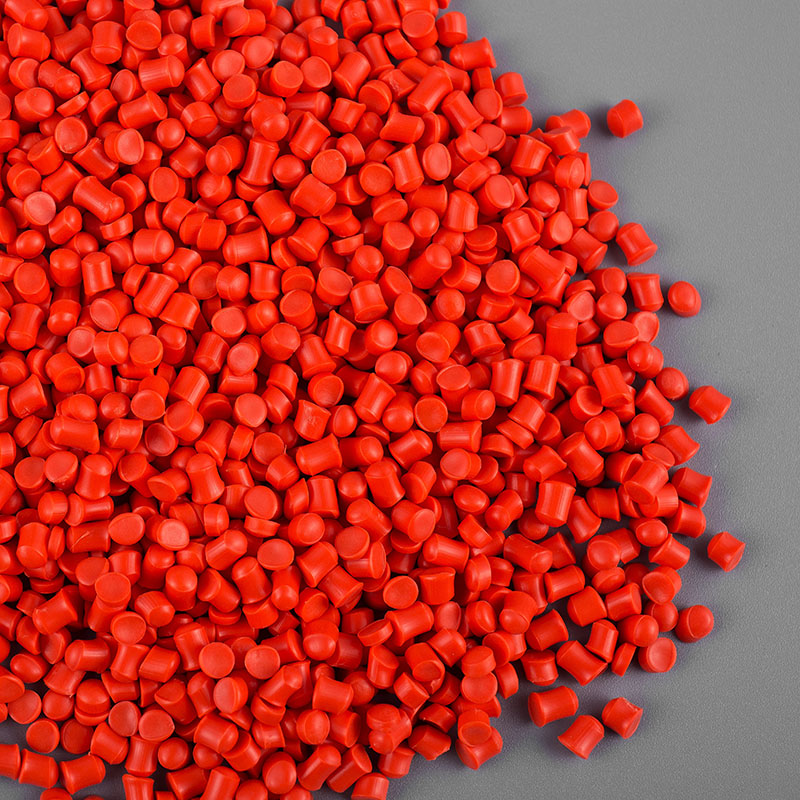

UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound

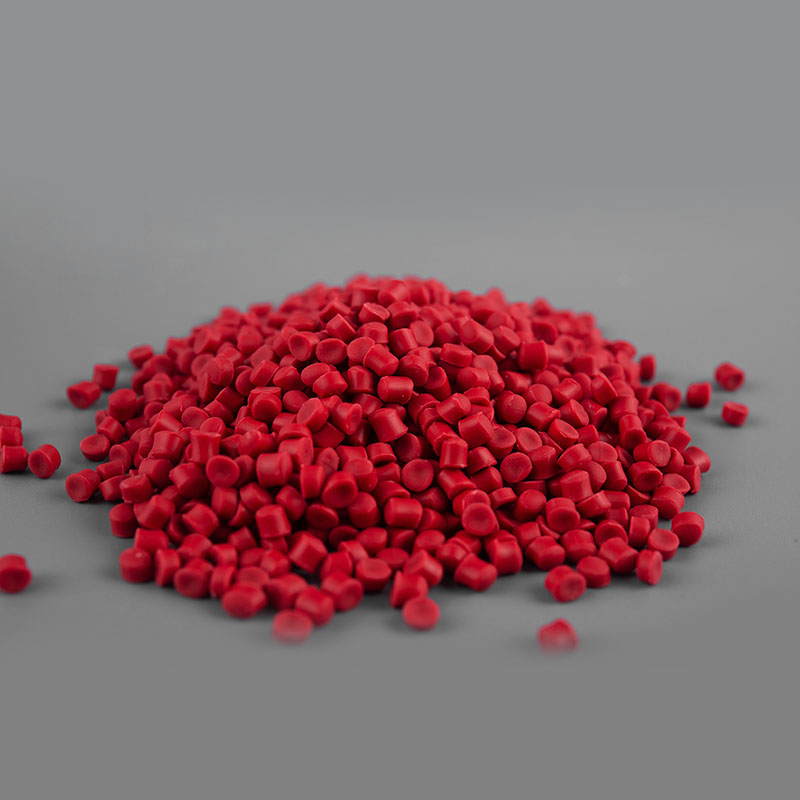

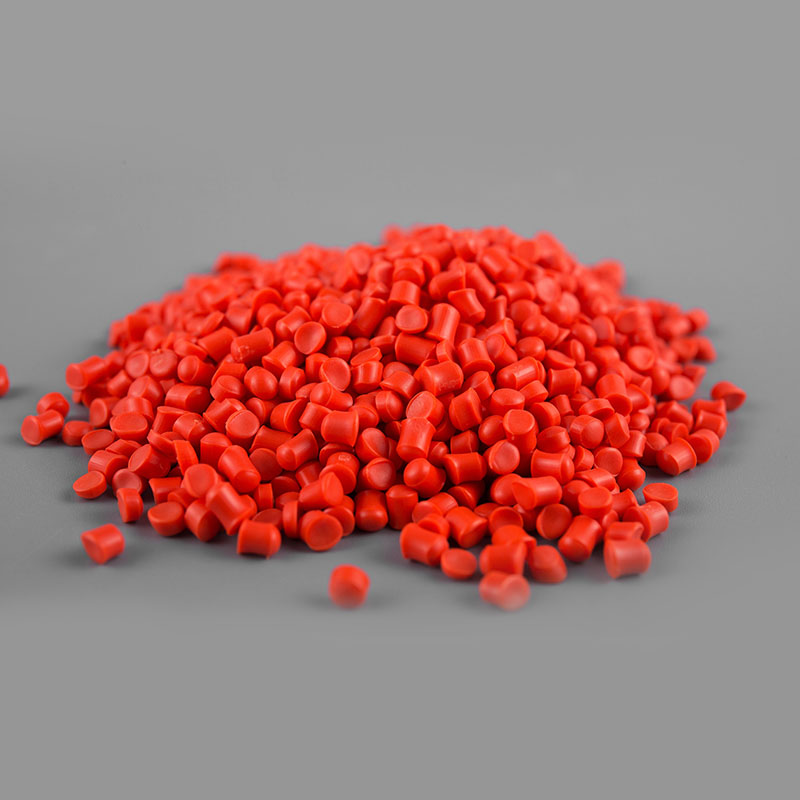

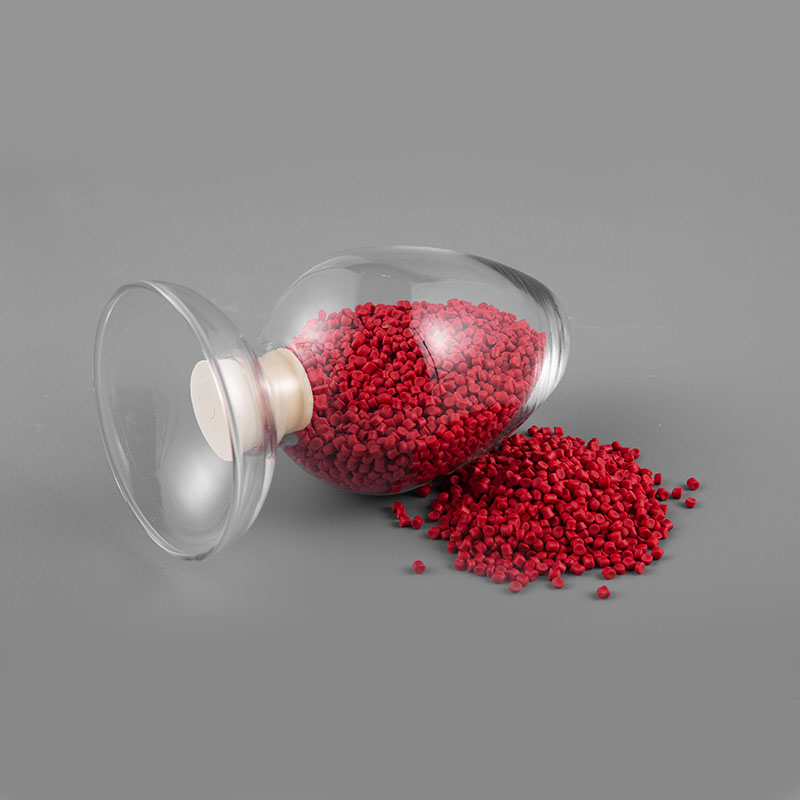

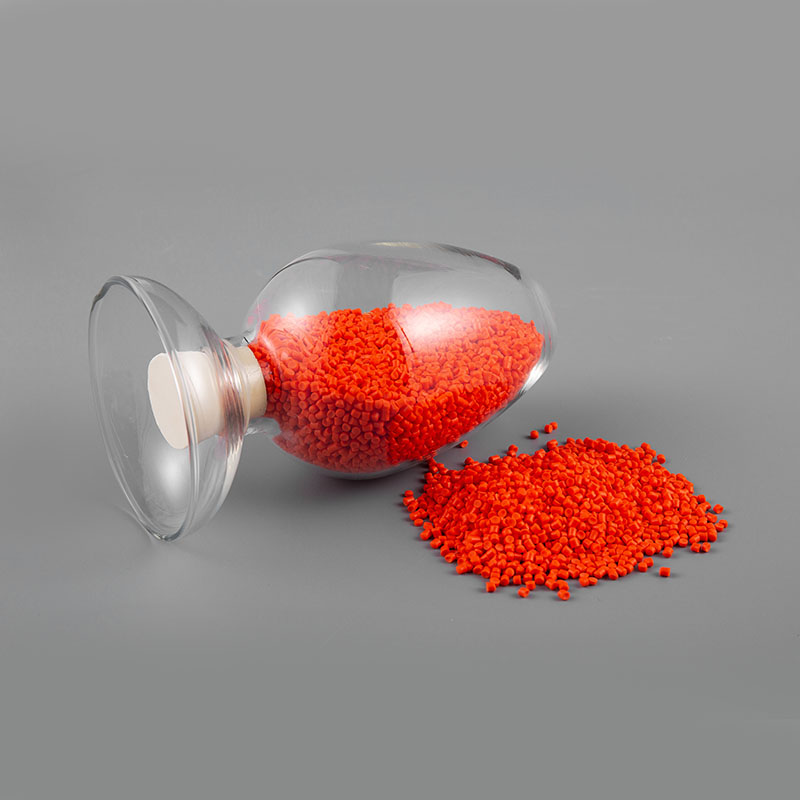

UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound is a high-performance cable sheathing material. It has high temperature resistance and can maintain stable performance in a high temperature environment of 90°C. The material complies with Australian standards and has ultraviolet (UV) resistance, effectively resisting the erosion of ultraviolet rays and extending the service life of the cable. Has insulating properties and wear resistance. This sheathing material is widely used in outdoor cables and cable systems that require UV resistance.

PREV：No previous articleNEXT：5V-90 90℃ Australian Standard PVC Sheath Compound
Contact Us
UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound
  • UV/5V-90 90℃ Australian Standard UV-Resistant PVC Sheath Compound

International Standard Cable Compound

Australian/New Zealand Standard

Insulating and sheathing materials for electric cables

Model, brand, name, execution standard, and purpose

Model Name

Execution standards

V-90

90 ℃ Australian standard PVC insulation material

AS/NZS 3808:2020

5V-90

90 ℃ Australian standard PVC sheath material

UV/5V-90

90 ℃ Australian standard UV-resistant PVC sheath material



Mechanical and electrical properties

 Pilot project

unit

Standard value

V-90

5V-90

UV/5V-90

Shore hardness

Shore A/

15 Sec

90±3

89±3

89±3

Density

g/cm³

1.42±0.03

1.42±0.03

1.42±0.03

Tensile strength

MPa

≥12.5

≥12.5

≥12.5

Elongation at break

%

≥150

≥150

≥150

Aging condition

--

115℃*504H

115℃*504H

115℃*504H

Tensile strength retention

%

≥75

≥75

≥75

Elongation at break retention rate

%

≥65

≥65

≥65

Thermogravimetric condition



115℃*120H

115℃*120H

115℃*120H

Thermal mass loss

mg/cm²

≤2.5

≤2.5

≤2.5

Heating deformation

--

120℃

Deformation rate≤50%

121℃*2000g*1H，

Deformation rate≤50%

121℃*1H，

Deformation rate≤50%

20℃ Volume resistivity

Ω·m

≥1.0*1011

--

--

720h/1008hUV resistance test

--

--

--

Pass
