ZJR-70 70℃ PVC Flame Retardant Flexible Insulation Plastic

ZJR-70 70℃ PVC Flame Retardant Flexible Insulation Plastic can remain stable in a high temperature environment of 70℃, has flame retardant properties, and effectively prevents the spread of fire. The flexibility makes the cable easy to install and maintain. Has electrical and mechanical properties. It is widely used in electric power, communications and other fields.

1. Flame retardant PVC insulating material for wires and cables

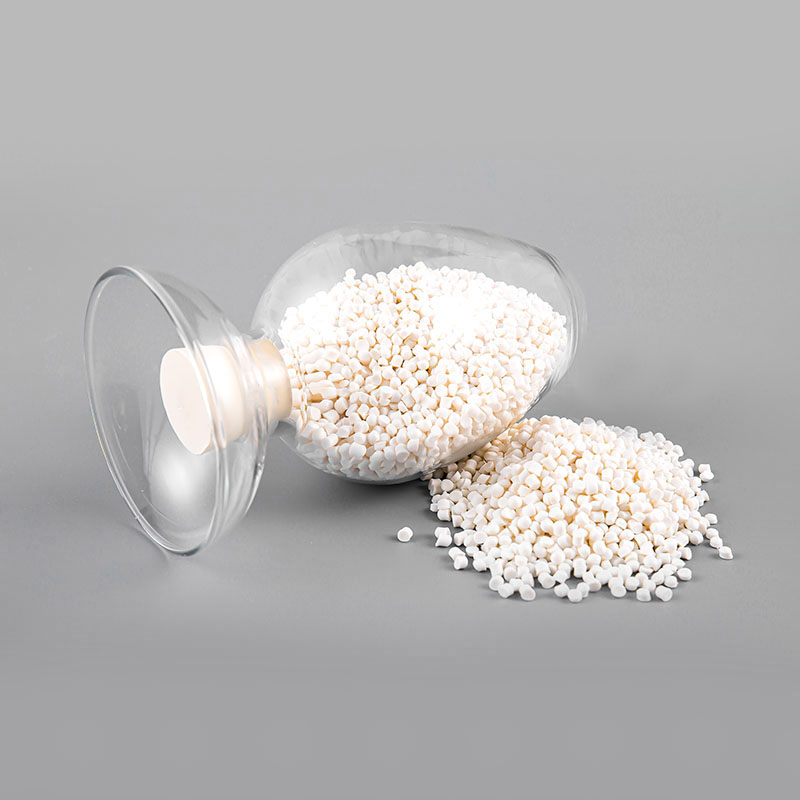

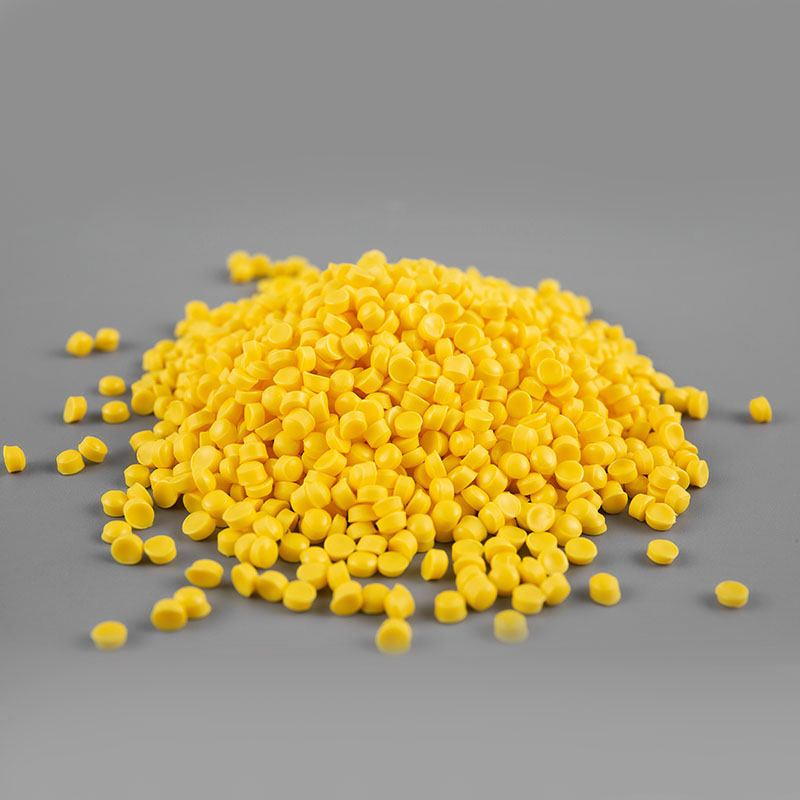

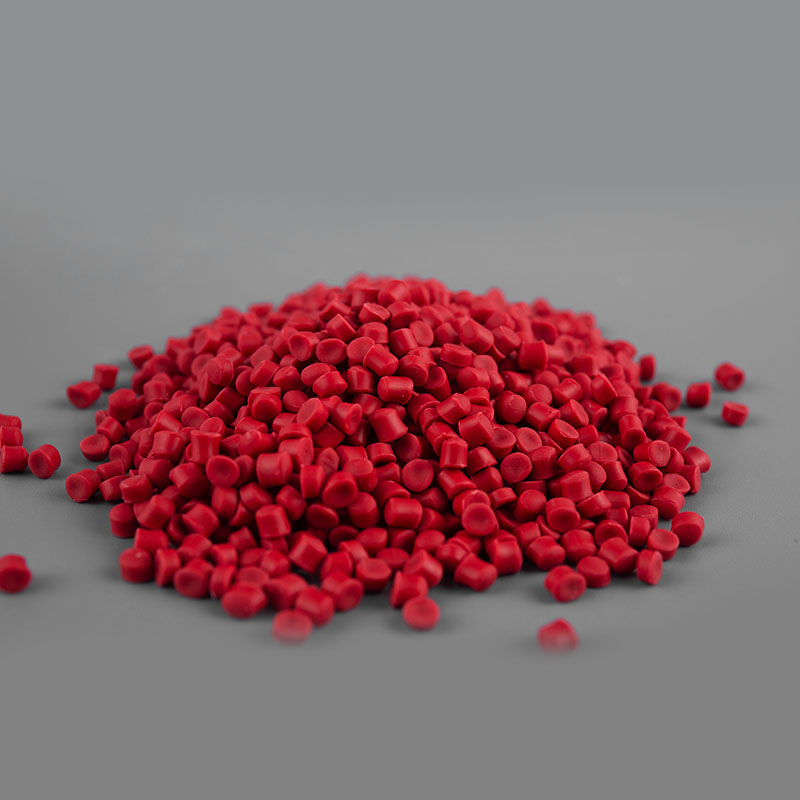

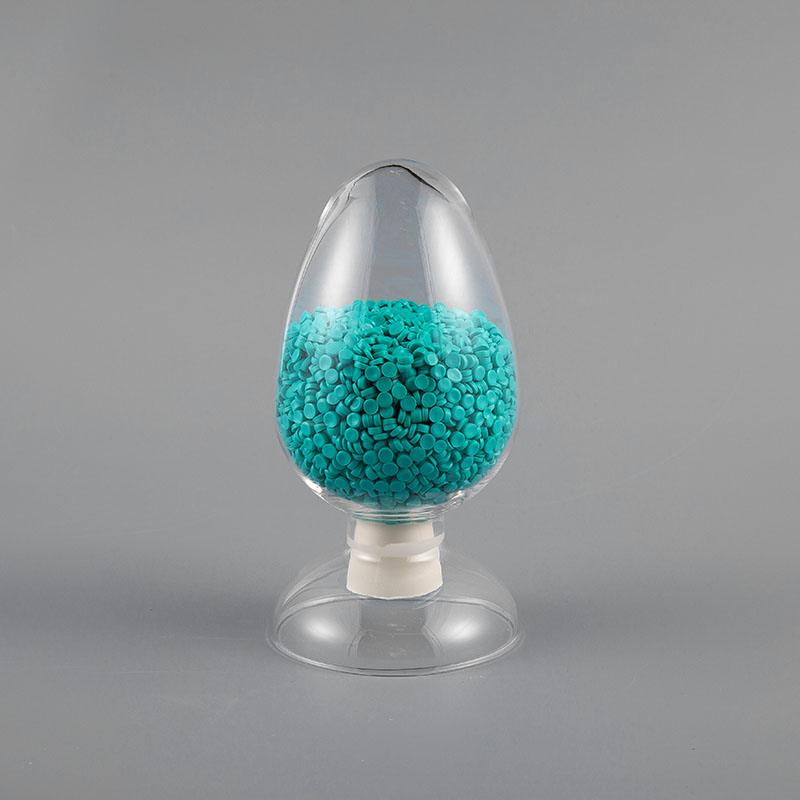

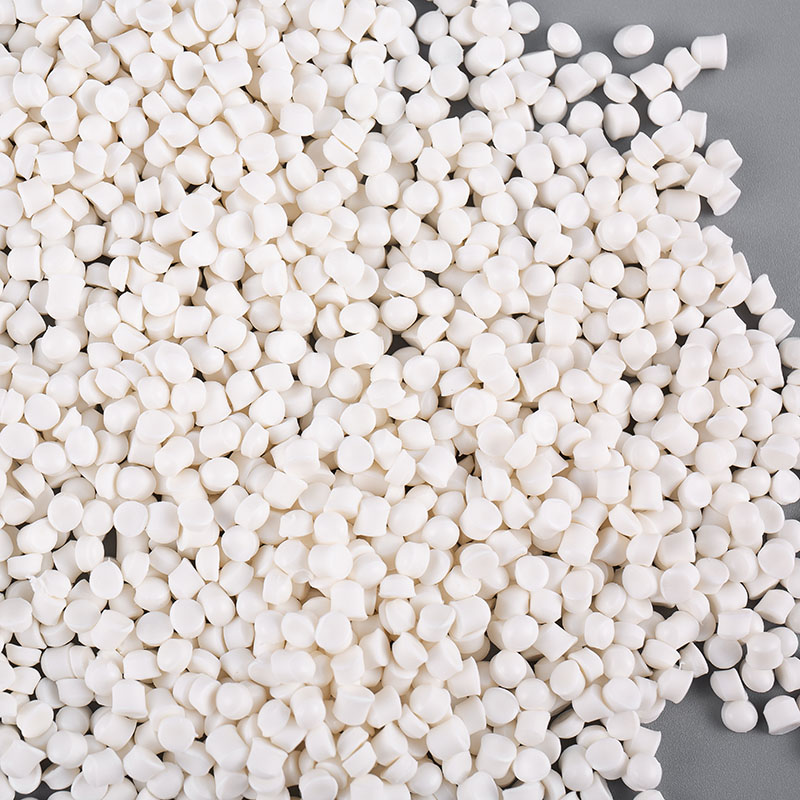

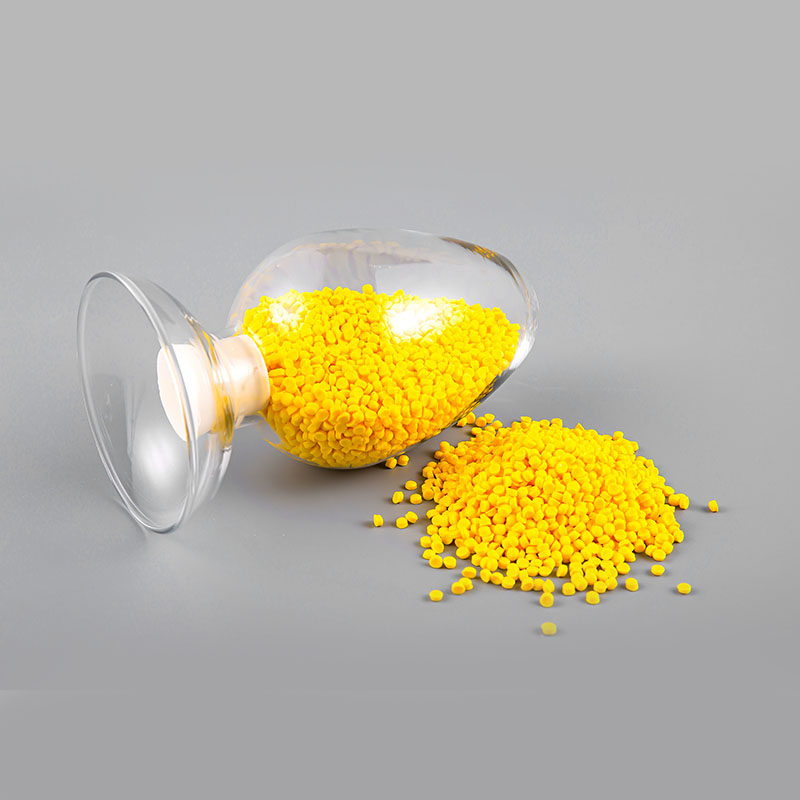

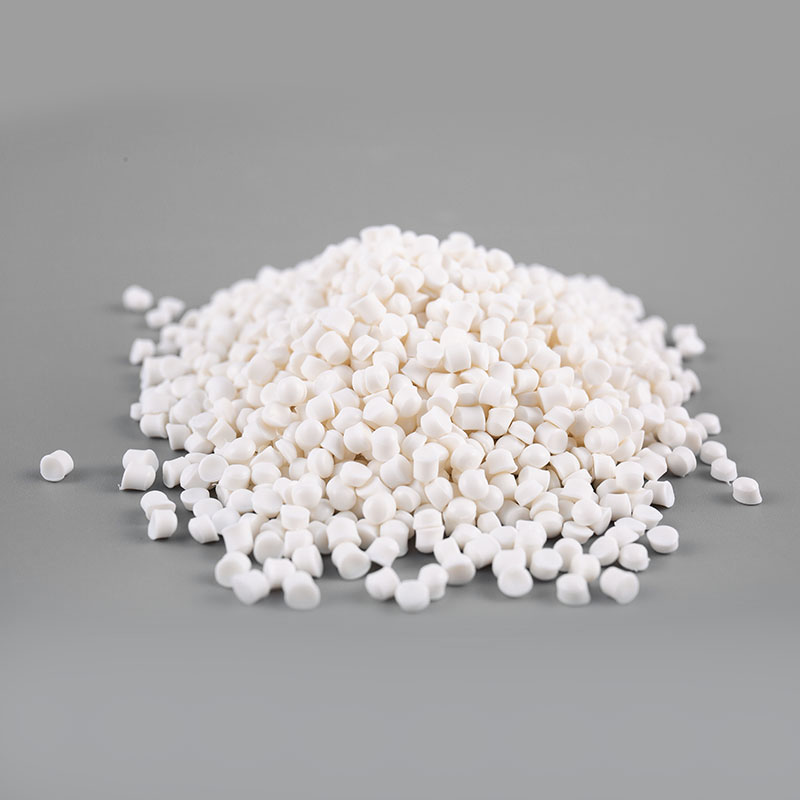

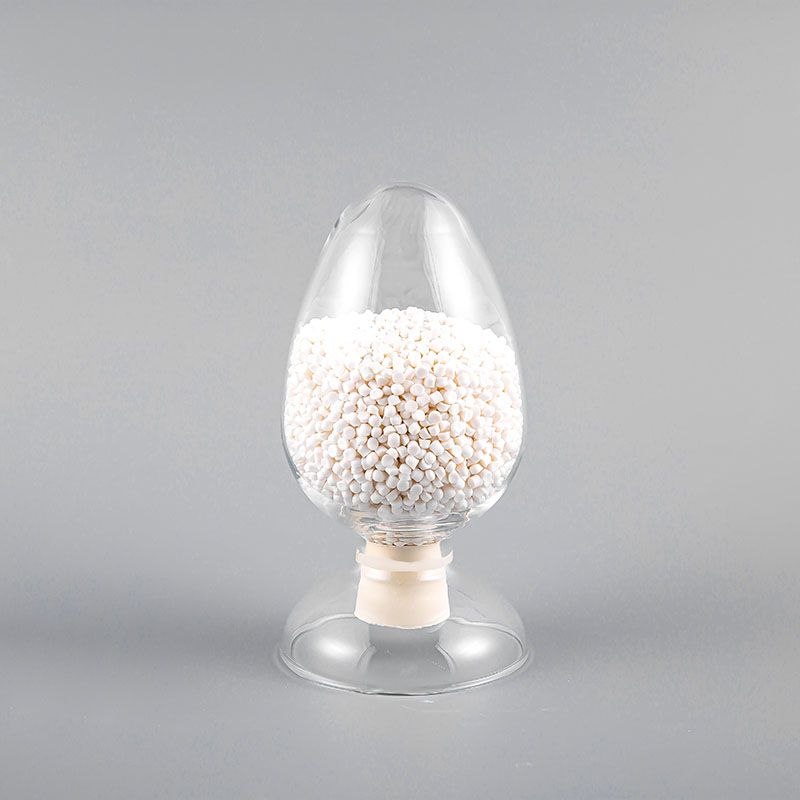

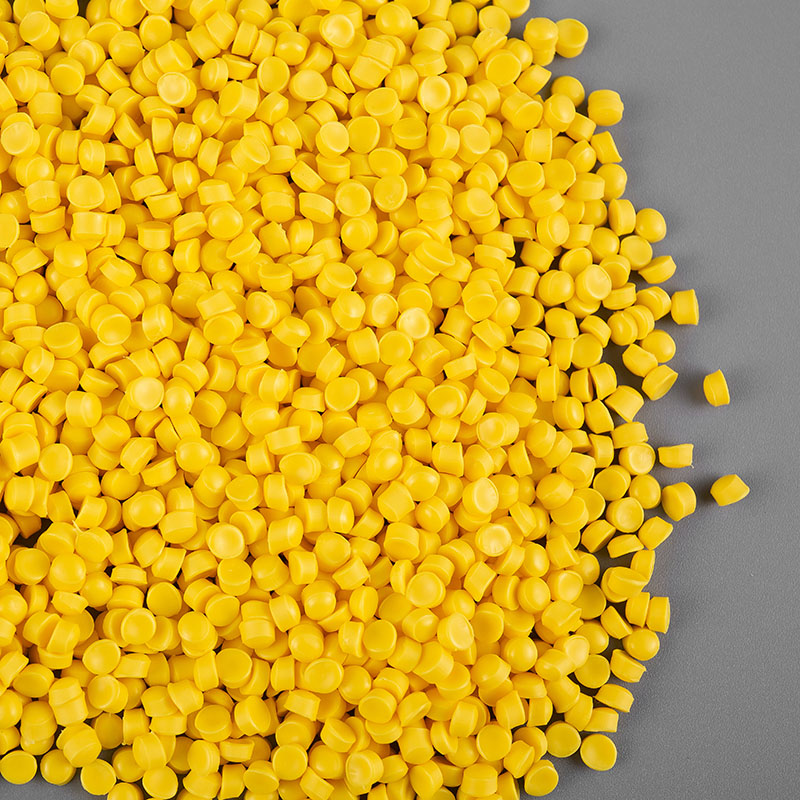

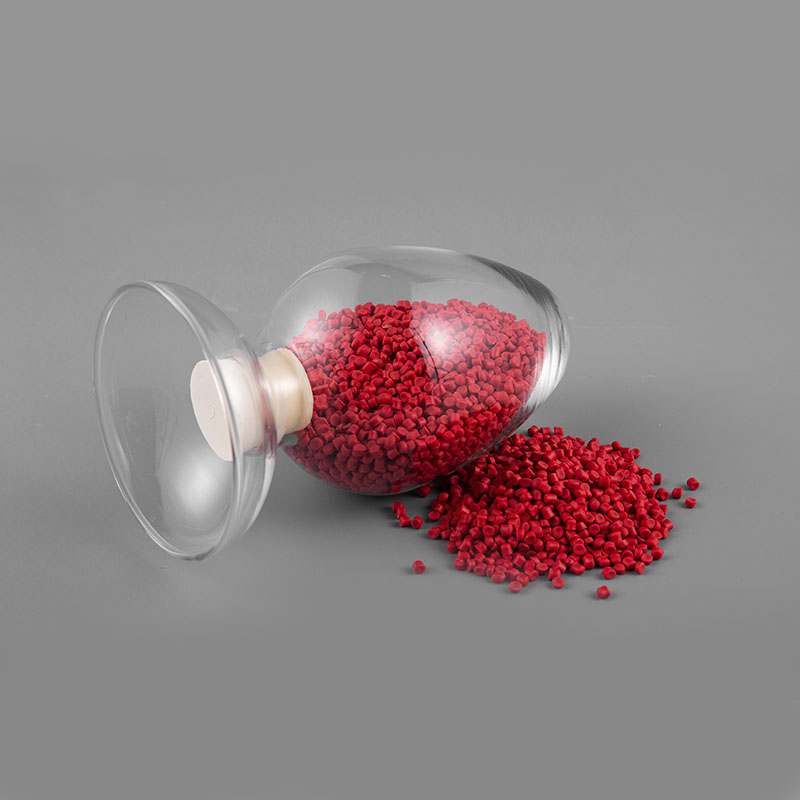

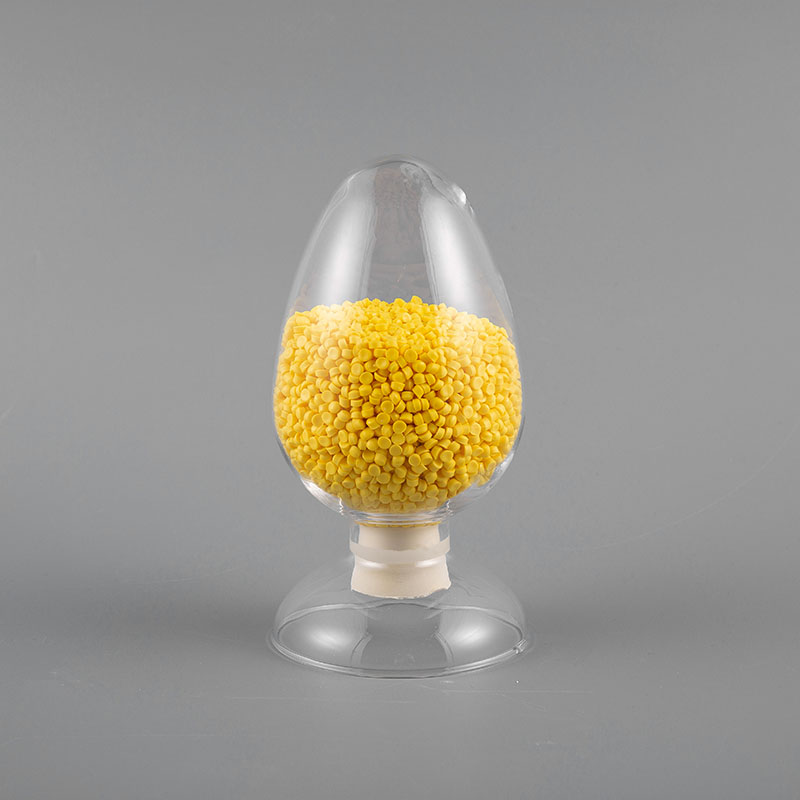

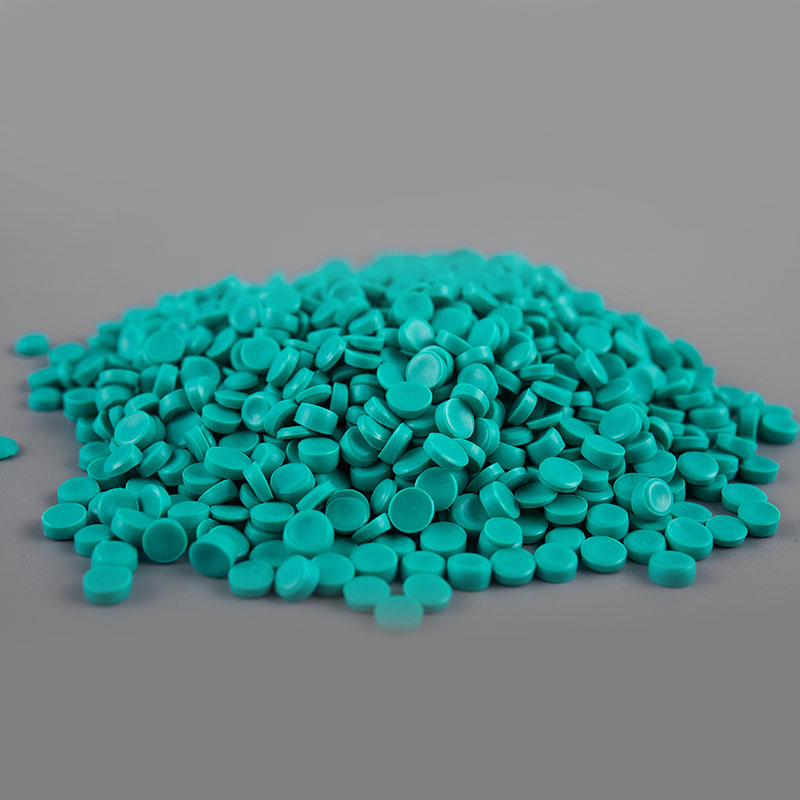

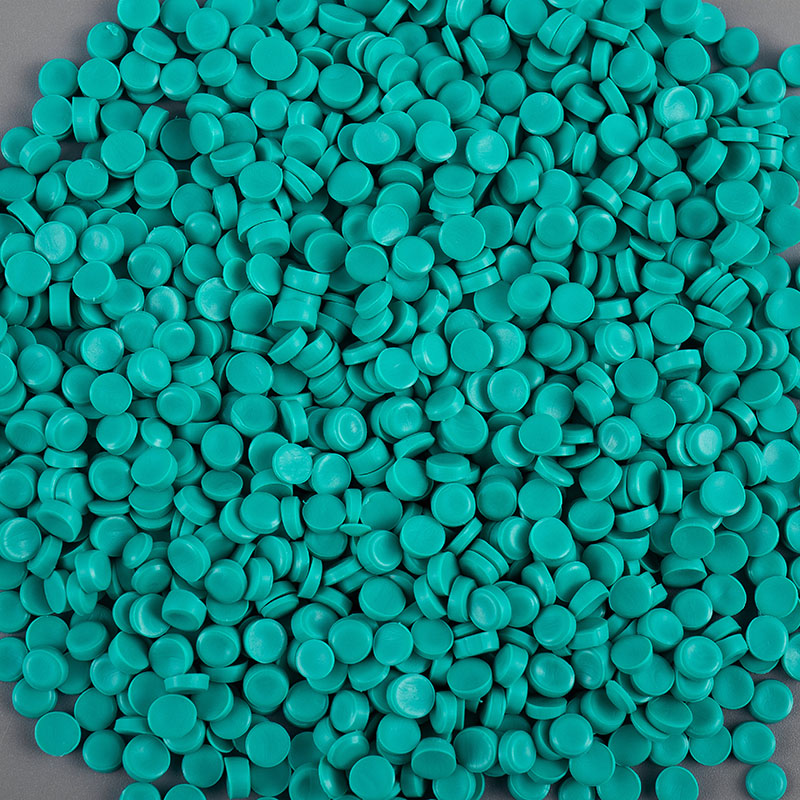

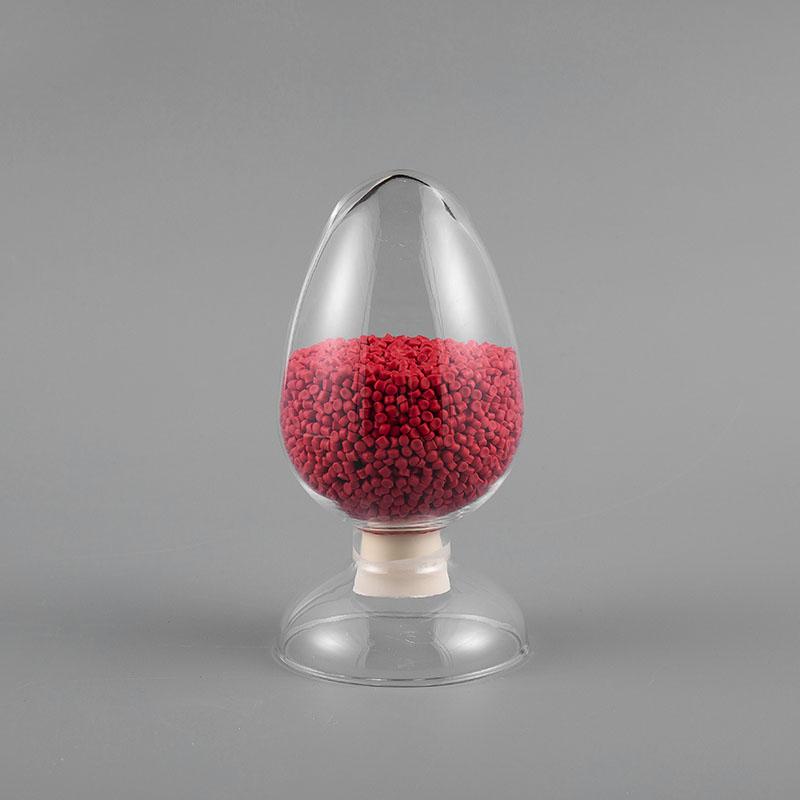

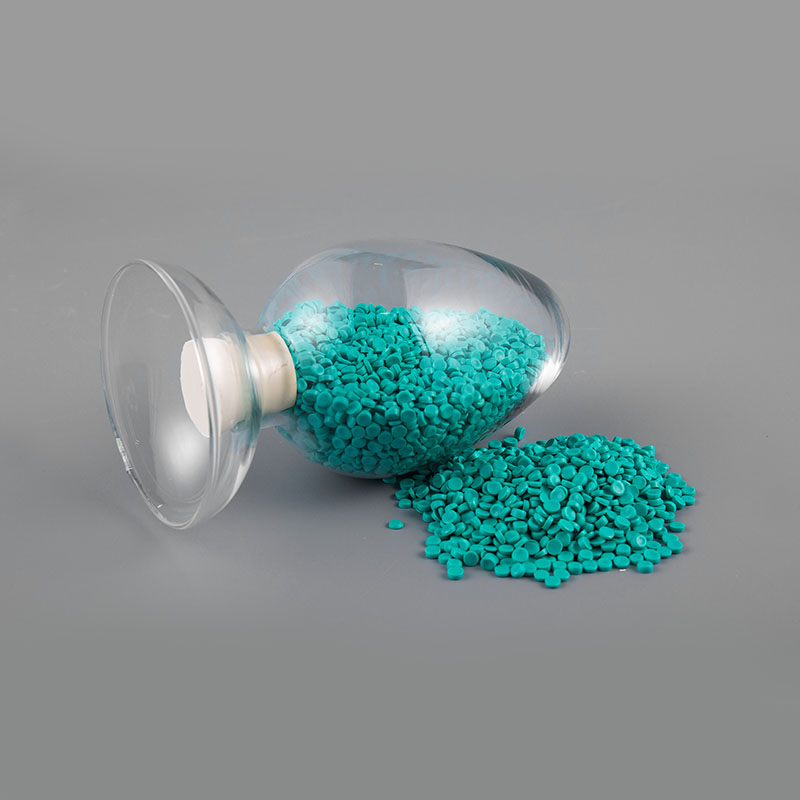

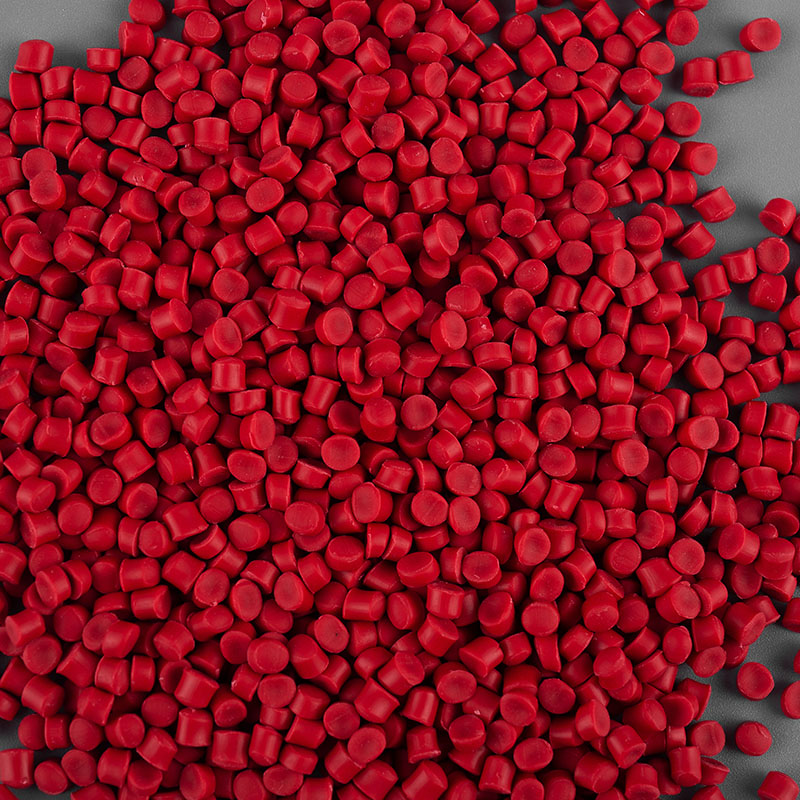

Flame retardant PVC insulating material for wire and cable is a granular material prepared by mixing, plasticizing and granulating with polyvinyl chloride resin as the base material, adding plasticizers, stabilizers, flame retardants and other additives.

Model, brand, name, implementation standard and use

Model	trademark	Maximum core operating temperature (°C)	name	Enforce the standard	use
ZJ-70	7041	70	70°C PVC flame retardant soft insulating layer plastic	GB/T8815-2008	Core working temperature 70°C flame retardant PVC wire rope insulation plastic
ZJR-70	7042	70	70°C PVC flame retardant soft insulating plastic		Core working temperature 70°C flame retardant PVC flexible wire insulation plastic for wires
ZJ-90	9041	90	90°C PVC flame retardant soft insulating layer plastic		The core working temperature is 90°C, flame retardant, PVC, electric power interfix, insulating plastic

Note: The relative density index and color are determined by the supply and demand sides through negotiation

Mechanical, physical and electrical properties

Pilot project		unit	Benchmark value
			7041	7042	9041
Tensile strength		≥MPa	15.0	15.0	16.0
Tensile strain at break		≥%	150	180	150
Impact embrittlement temperature		≤℃	-15	-20	-15
Volume resistivity at 20°C		≥Ω.m	1.0X10¹²	1.0X10¹¹	1.0 X10¹²
At operating temperature, volume resistivity	Test temperature	℃	70±1	70±1	95±1
	Volume resistivity	≥Ω.m	1.0X10⁹	1.0X10⁸	5.0X10⁸
Dielectric strength		≥MV/m	20	20	20
Thermal deformation		≤%	40	50	30
200°C thermal settling time		≥min	60	60	180
Oxygen index		%	26~36	26~32	26~36
Heat-aging properties
Thermal aging temperature		℃	100±2	100±2	Sec. 135±2	Sec. 115±2
Thermal aging time		h	168	168	240	240
Tensile strength after aging The maximum rate of change in tensile strength		≥MPa	15.0	15.0	16.0
		≤%	±20	±20	±20
Tensile strain at break after aging The maximum rate of change of tensile strain at break		≥%	150	180	150
		≤%	±20	±20	±20
Loss of quality		≤g/m²	20	20		20

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;
Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by the supply and demand parties;
Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse.
