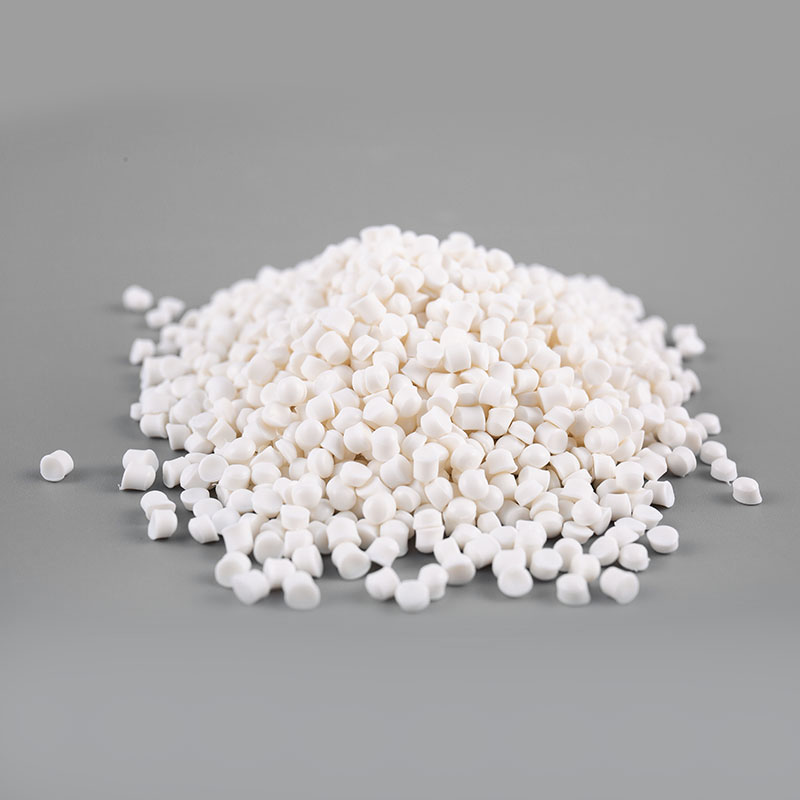

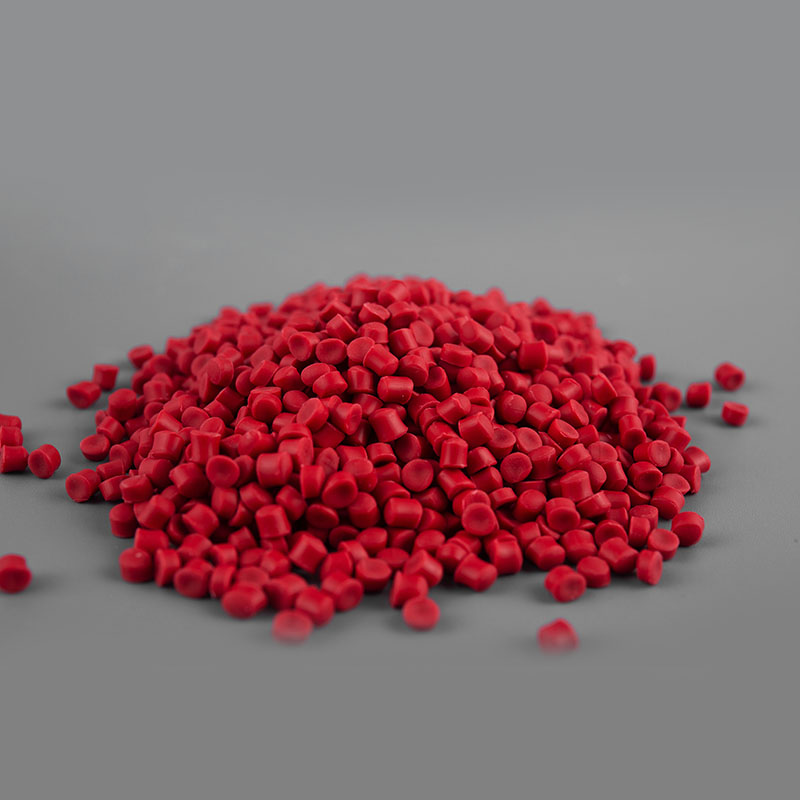

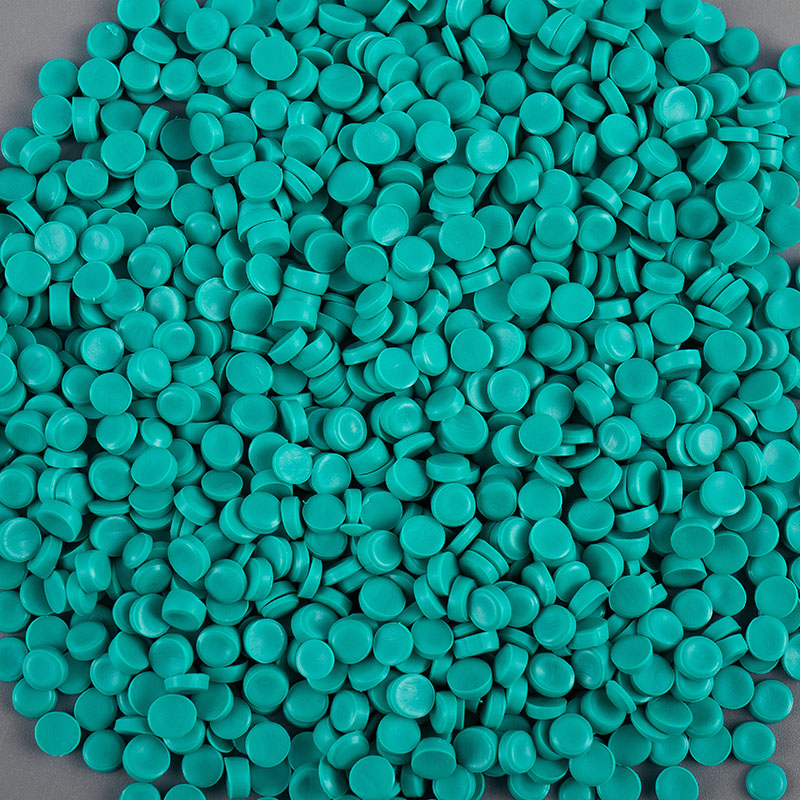

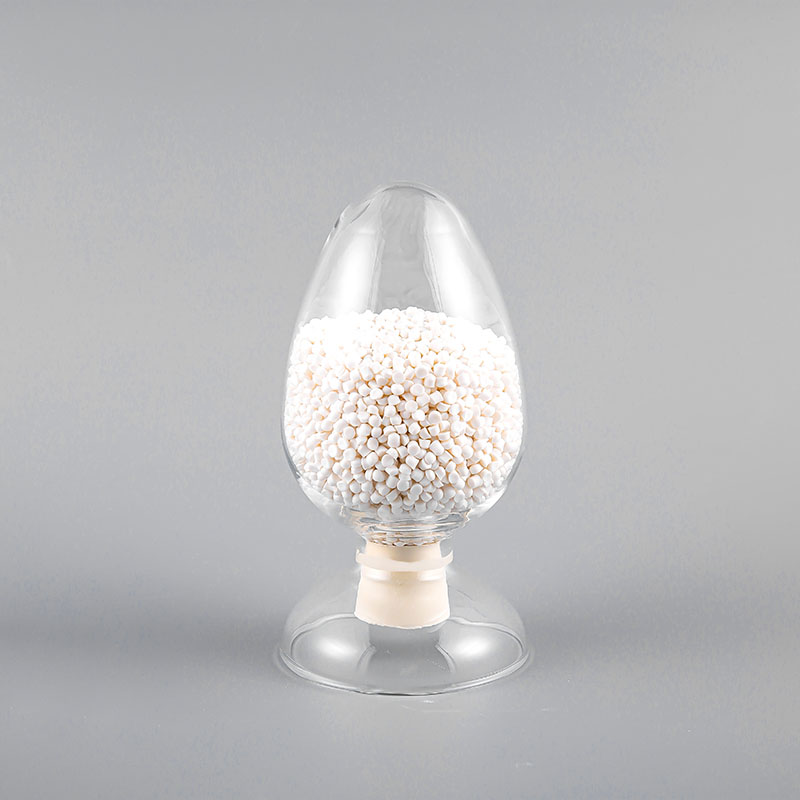

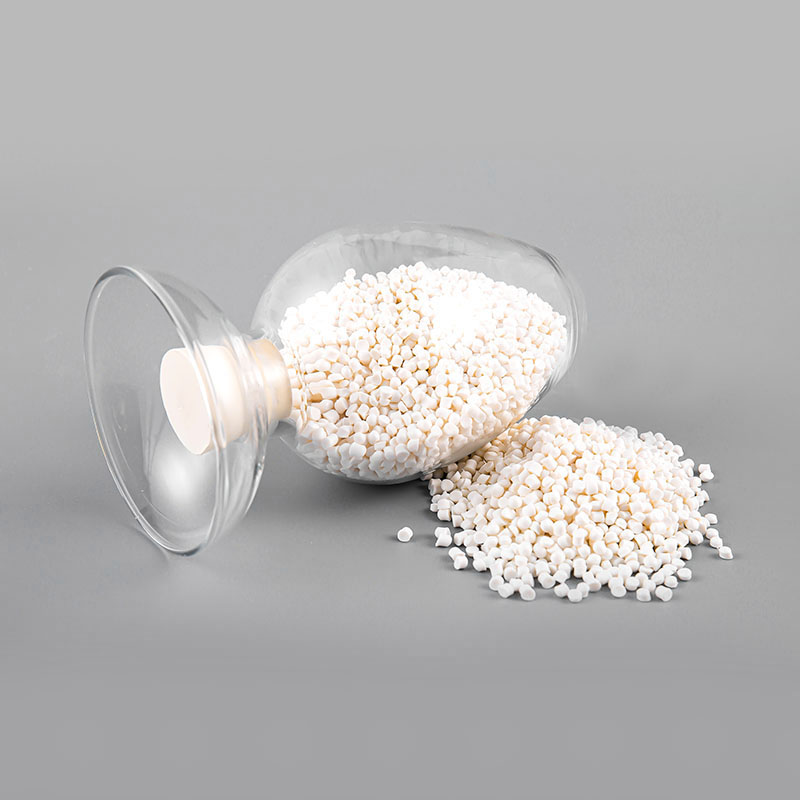

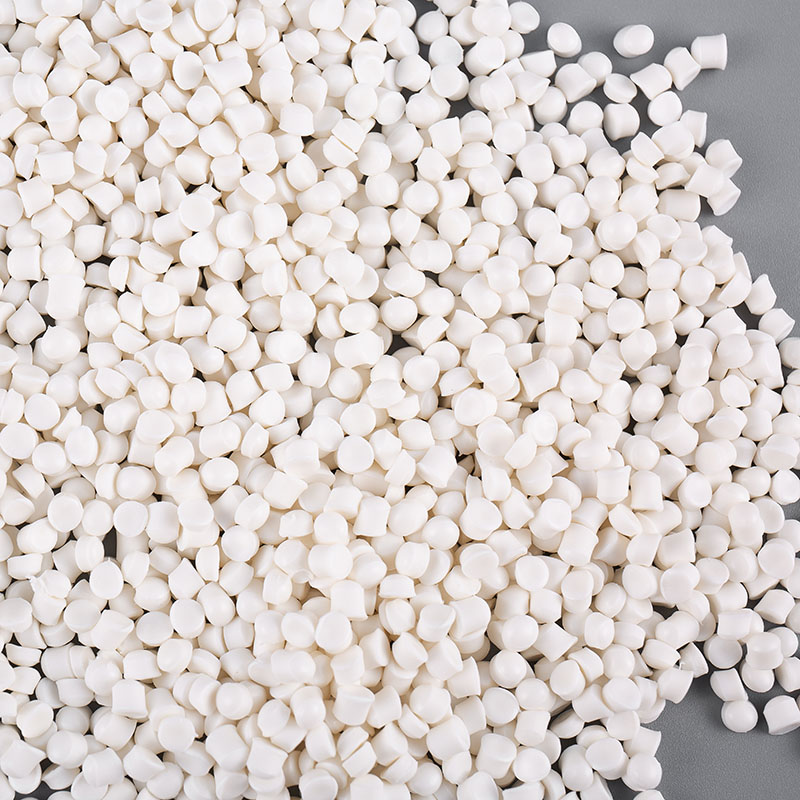

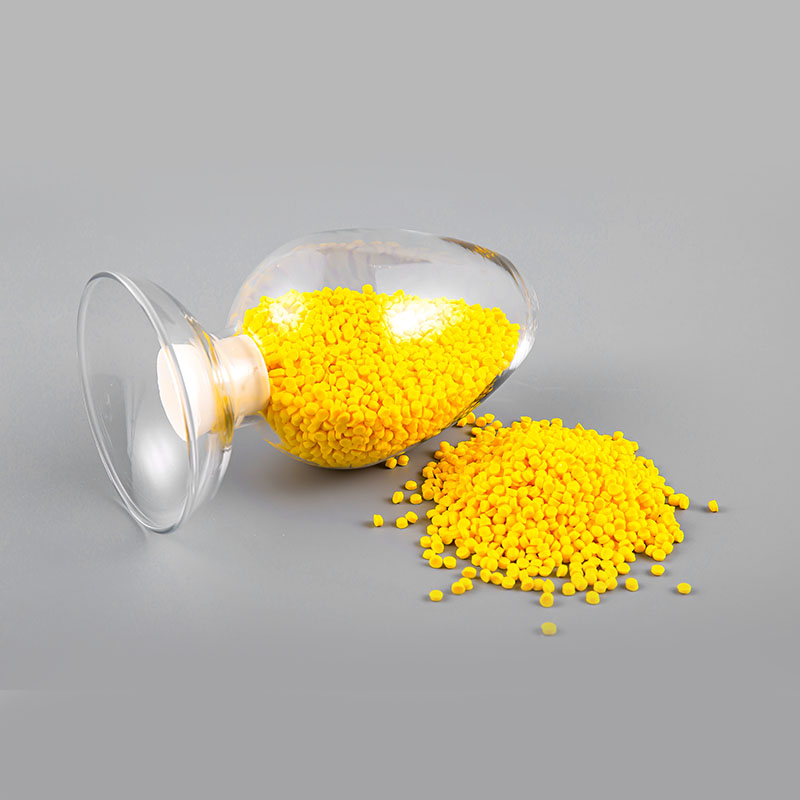

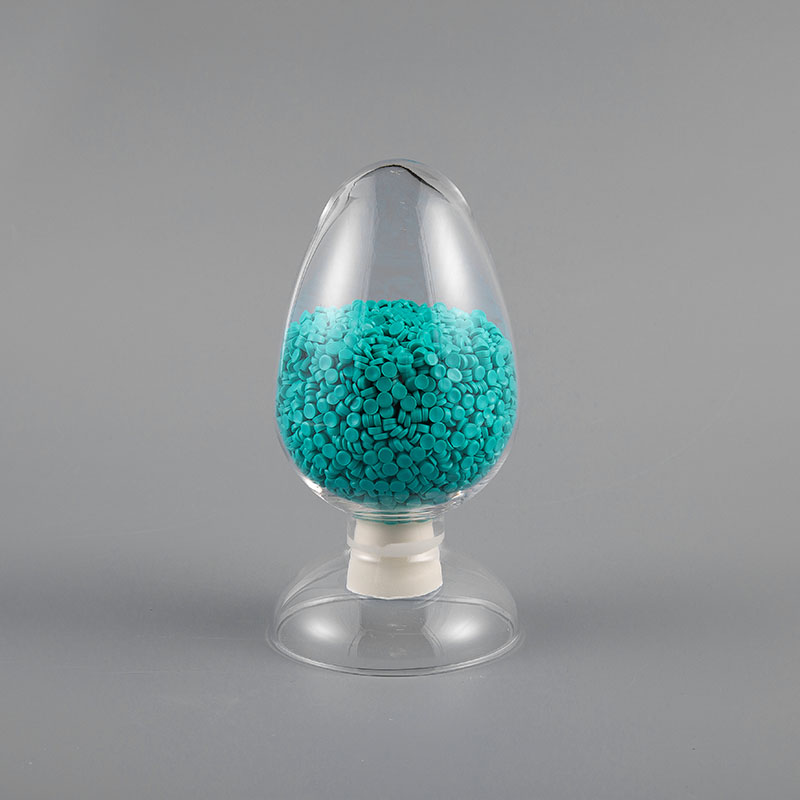

ML-FJ9001/1051/1251 105/125℃ Radiation Cross-Linked Halogen-Free Low Smoke Insulation Compound

ML-FJ9001/1051/1251 105/125℃ Radiation Cross-Linked Halogen-Free Low Smoke Insulation Compound uses radiation cross-linking technology to improve the heat resistance of the material and enable it to operate stably for a long time in high temperature environments of 105 to 125℃. It has the characteristics of halogen-free and low-smoke, and releases very little smoke and harmful substances when burning, which improves the safety of cable use. This material is widely used in power cables, communication cables and other fields.

Irradiated cross-linked halogen-free low-smoke cable material

The irradiated cross-linked halogen-free low-smoke cable material is made of EVA and POE as the main substrates, and inorganic flame retardants, lubricants, antioxidants, etc. are added. These kinds of products are used in cloth wires, photovoltaics, new energy vehicle inner wires, energy storage cables, marine cables, UL wires, automotive wires, etc. The performance should have the characteristics of halogen-free acid gas release and low smoke generation, and it is a safe and environmentally friendly flame-retardant polyolefin material that meets ROSH and REACH standards.

Grade, name and use

trademark	Product name	density	Oxygen index	use
ML-FJ1051/1251	105/125T irradiated cross-linked halogen-free low-smoke insulating material	1.5	34	Cloth wire insulation, in line with JB/T10491 requirements
ML-FJ1051B1	B1 grade 105°C irradiated cross-linked halogen-free low-smoke insulating material	1.70	38	B1 grade cloth wire insulation, in line with JB/T10491 and GB 31247 requirements
ML-FH125-PV/FJ125-PV	125°C halogen-free low-smoke flame retardant photovoltaic sheath/insulation	1.42/1.30	30/26	PV cable sheath/insulation, in accordance with 2PFG.1169/EN50618 standard
ML-FJ1251R/1501R	125/150°C irradiation cross-linked halogen-free low-smoke flame retardant cable material for automobile wire	1.36	28	125/150°C new energy vehicle line interior line materials, energy storage cables
ML-FH9001	90°C irradiated cross-linked halogen-free low-smoke flame retardant sheath	1.48	36	Suitable for SHF2 jacket in IEC60092-359, single oil resistant
ML-FJ1251U/1501U	125/150°C irradiation cross-linked halogen-free low-smoke flame retardant cable material for electronic wire	1.32	26	UL1581 compliant and FT2 combustible

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse

Typical values of irradiated cross-linked halogen-free low-smoke cable materials

project		unit	ML-FJ1051 /1251	ML- FJ1051B1	ML-FJ1251U /1501U	ML-FH125-PV /FJ125-PV	ML-FJ1251R /1501R	ML-FH9001
density		g/cm3	1.50	1.70	1.32	1.42/1.30	1.36	1.48
Tensile strength		MPa	11.3	11.5	14.5	13.2/12.3	10.8	12.3
Elongation at break		%	208	178	415	236/358	315	223
hot old change sex Yes	Temperature X Time	℃ xh	135/158℃ X168h	135℃ X168h	158/180℃ X168h	150±2°C X168h	100±2°C X168h	121℃X168h
	Strength 变 Rate max	%	11	8	6	9	11	7
	Elongation Rate of change max	%	-9	-8	-7	-12	-11	-6
Low-temperature impact embrittlement temperature		-40℃	Pass	Pass	Pass	Pass	Pass	Pass
Volume resistivity 20°C		Ω. m	4.3 X1011	8.3X1011	7.8X1011	7.1X1011/3.1 X1013	6.2 X1011	5.2 X1012
Strength of intervention		MV/m	25	28	26	26	27	28
smoke dense degree	Flameless	--	313	246	-	323/-	338	332
smoke dense degree	There is a flame	--	79	68	-	87/-	88	90
Oxygen index		%	34	38	28	30/26	28	36
PH value		-	5.5	5.4	5.6	5.6	5.8	5.8
electrical conductivity		μs/mm	1.9	1.3	1.4	1.5	1.5	1.7
Shore HA		-	96	94	96	94	92	95

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse.

Coming From China, Marketing To The World.

Hangzhou Meilin New Materials Technology Co., Ltd. is China Wholesale ML-FJ9001/1051/1251 105/125℃ Radiation Cross-Linked Halogen-Free Low Smoke Insulation Compound Suppliers and ML-FJ9001/1051/1251 105/125℃ Radiation Cross-Linked Halogen-Free Low Smoke Insulation Compound Factory, we were established in July 1994 (formerly known as Zhejiang Lin'an Hongyan Plastic Factory). The company has two factories located at 619 Linglongshan Road and 259 Xingyu Street, Lingqiu Street, Linglong Industrial Park, Lin'an District, Hangzhou City. The registered capital of the company is 75 million yuan, covering an area of over 18000 square meters and a building area of over 30000 square meters. Currently, modern industrial factories and 18 advanced automated production lines have been built. The new factory area will be produced in 2021, making it the cleanest and most beautiful professional cable material manufacturer in the entire region—agreement conditions.

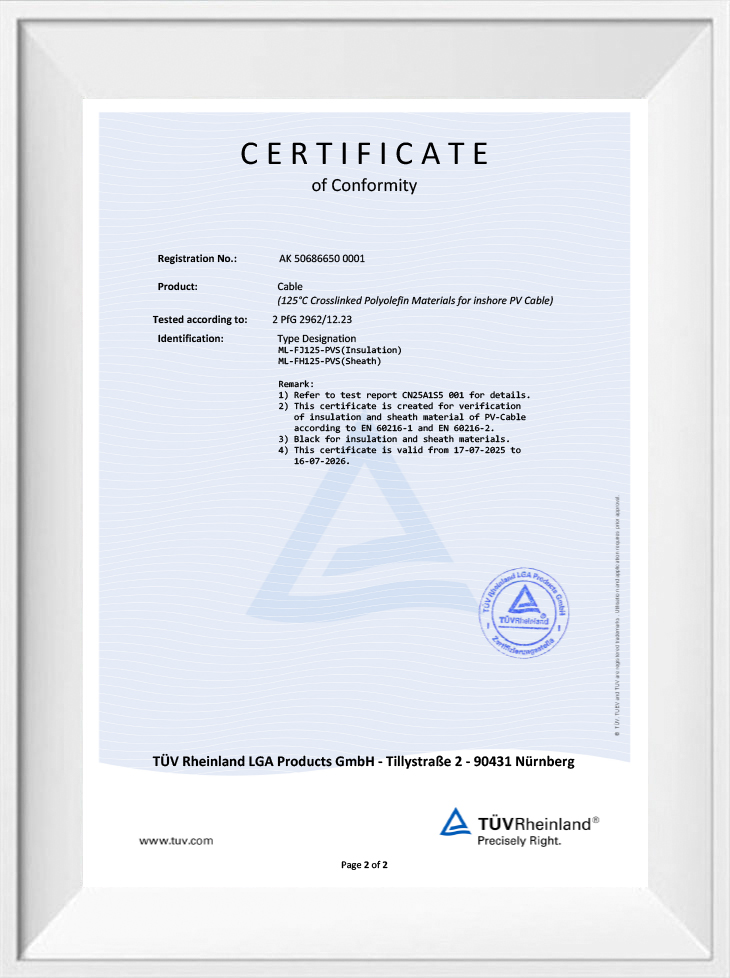

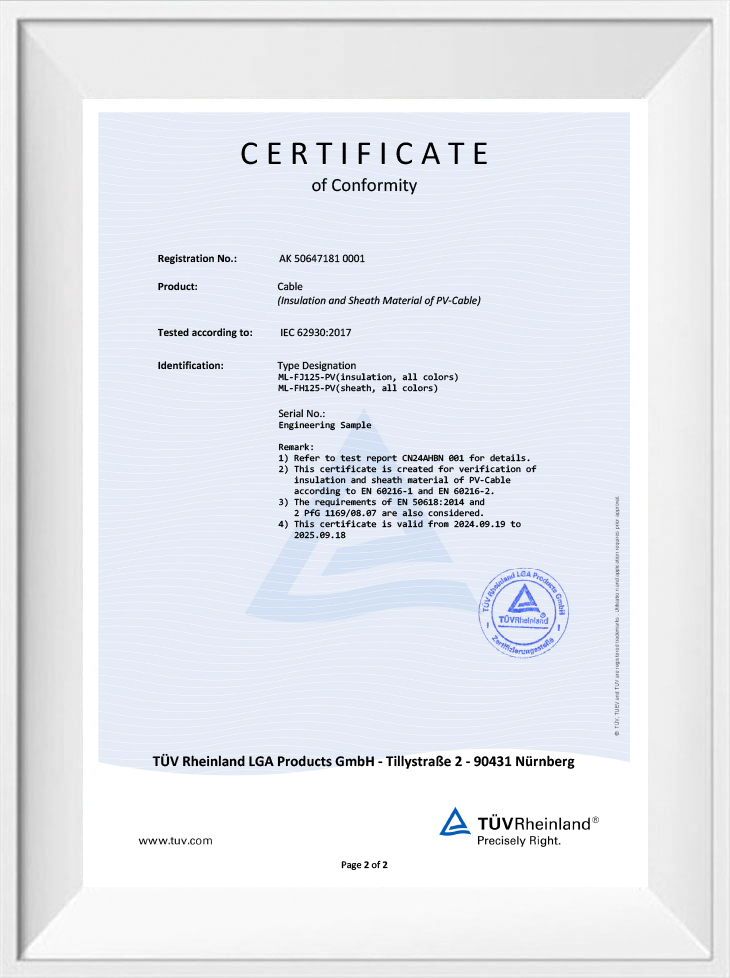

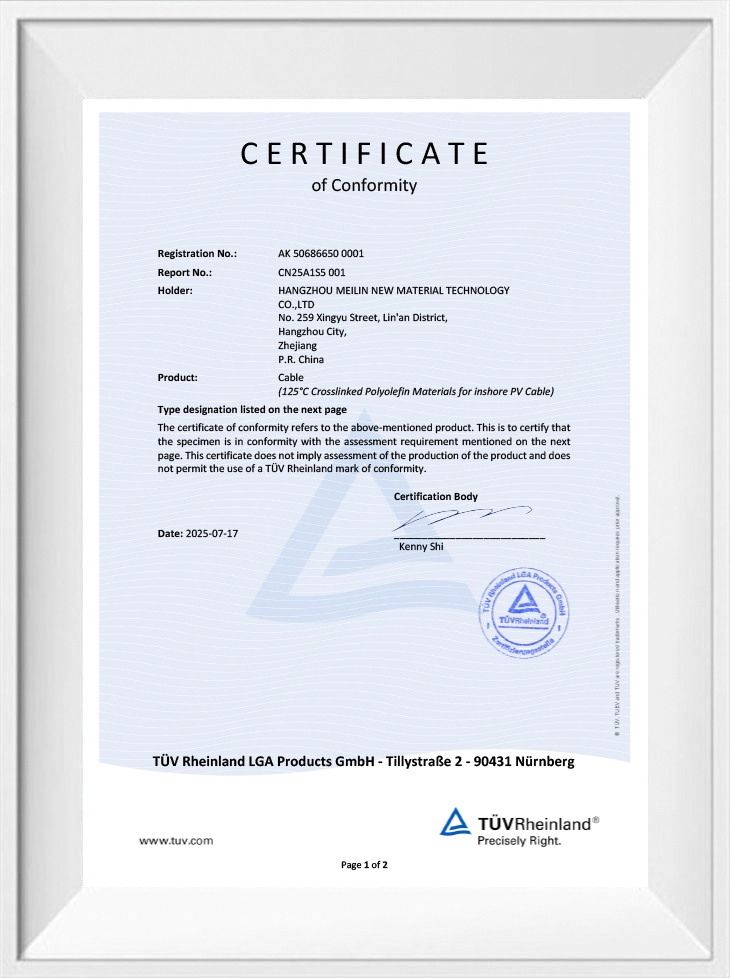

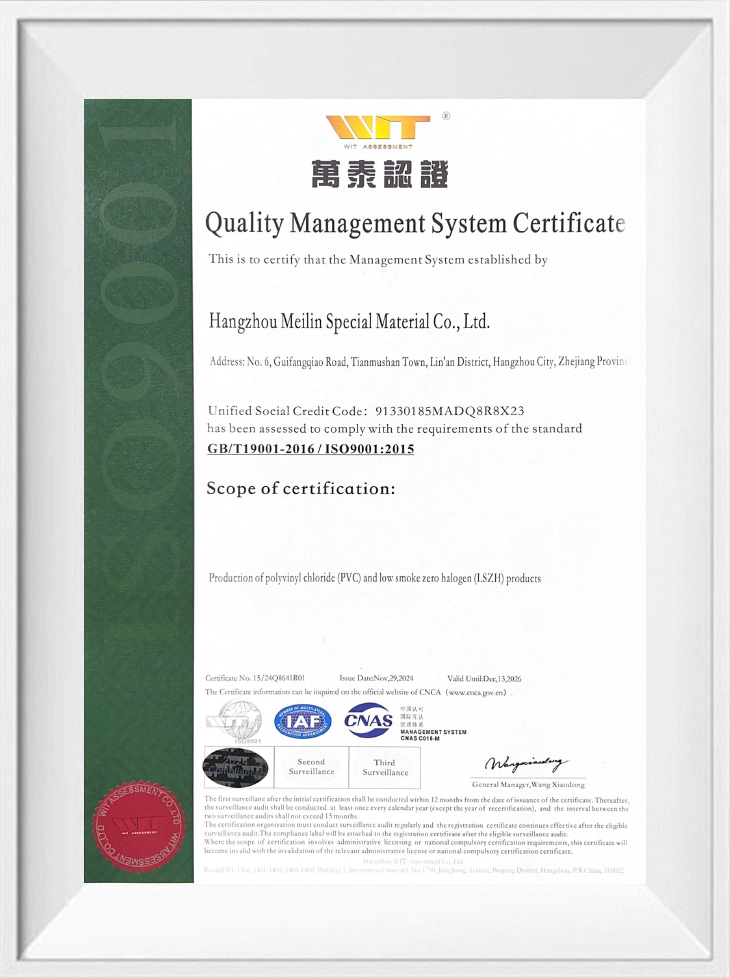

Certifications
