Wholesale ML-FH9001 90℃ Radiation Cross-Linked Halogen-Free Low Smoke Flame Retardant Sheath Compound Suppliers, Factory

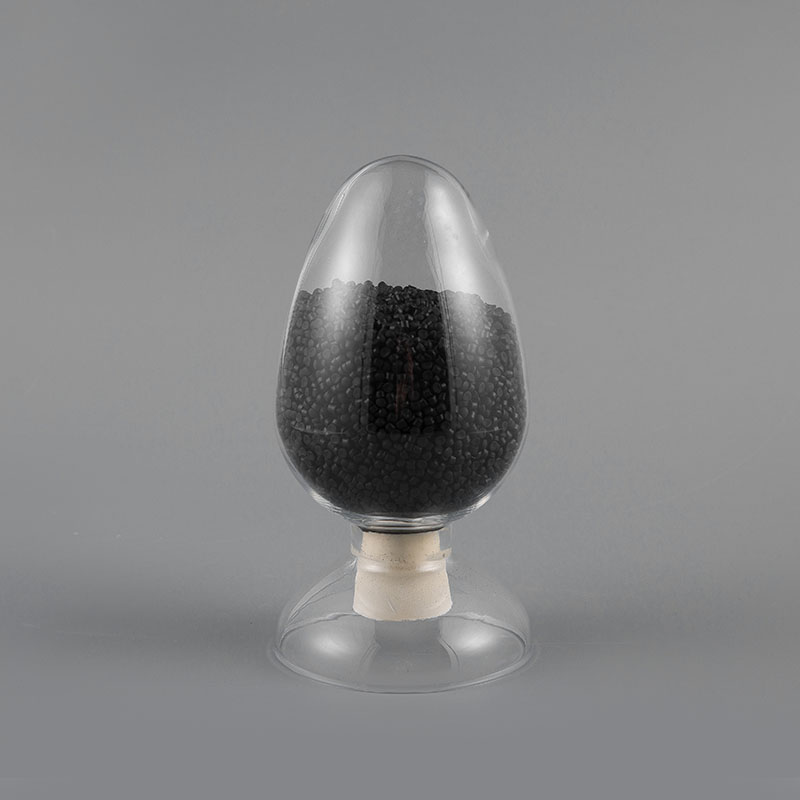

ML-FH9001 90℃ Radiation Cross-Linked Halogen-Free Low Smoke Flame Retardant Sheath Compound

ML-FH9001 90℃ Radiation Cross-Linked Halogen-Free Low Smoke Flame Retardant Sheath Compound is based on polyolefin resin and is made through a special process by adding high-quality halogen-free flame retardants and cross-linking agents. It has mechanical and physical properties, electrical properties, flame retardant properties and soft properties, does not contain halogen, produces low smoke, and complies with environmental standards such as RoHS. It is suitable for power cables, control cables, marine cables, etc., and operates stably at high temperatures (up to 90°C). Its flame retardant and low-smoke properties can significantly reduce smoke concentration and improve safety in the event of a fire.

Irradiated cross-linked halogen-free low-smoke cable material

The irradiated cross-linked halogen-free low-smoke cable material is made of EVA and POE as the main substrates, and inorganic flame retardants, lubricants, antioxidants, etc. are added. These kinds of products are used in cloth wires, photovoltaics, new energy vehicle inner wires, energy storage cables, marine cables, UL wires, automotive wires, etc. The performance should have the characteristics of halogen-free acid gas release and low smoke generation, and it is a safe and environmentally friendly flame-retardant polyolefin material that meets ROSH and REACH standards.

Grade, name and use

trademark	Product name	density	Oxygen index	use
ML-FJ1051/1251	105/125T irradiated cross-linked halogen-free low-smoke insulating material	1.5	34	Cloth wire insulation, in line with JB/T10491 requirements
ML-FJ1051B1	B1 grade 105°C irradiated cross-linked halogen-free low-smoke insulating material	1.70	38	B1 grade cloth wire insulation, in line with JB/T10491 and GB 31247 requirements
ML-FH125-PV/FJ125-PV	125°C halogen-free low-smoke flame retardant photovoltaic sheath/insulation	1.42/1.30	30/26	PV cable sheath/insulation, in accordance with 2PFG.1169/EN50618 standard
ML-FJ1251R/1501R	125/150°C irradiation cross-linked halogen-free low-smoke flame retardant cable material for automobile wire	1.36	28	125/150°C new energy vehicle line interior line materials, energy storage cables
ML-FH9001	90°C irradiated cross-linked halogen-free low-smoke flame retardant sheath	1.48	36	Suitable for SHF2 jacket in IEC60092-359, single oil resistant
ML-FJ1251U/1501U	125/150°C irradiation cross-linked halogen-free low-smoke flame retardant cable material for electronic wire	1.32	26	UL1581 compliant and FT2 combustible

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Logo: The packaging bag should be marked with: the name of the manufacturer, product variety and model, batch number, color, manufacturing date, net weight, this standard number, and affix the color mark;

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse

Typical values of irradiated cross-linked halogen-free low-smoke cable materials

project		unit	ML-FJ1051 /1251	ML- FJ1051B1	ML-FJ1251U /1501U	ML-FH125-PV /FJ125-PV	ML-FJ1251R /1501R	ML-FH9001
density		g/cm3	1.50	1.70	1.32	1.42/1.30	1.36	1.48
Tensile strength		MPa	11.3	11.5	14.5	13.2/12.3	10.8	12.3
Elongation at break		%	208	178	415	236/358	315	223
hot old change sex Yes	Temperature X Time	℃ xh	135/158℃ X168h	135℃ X168h	158/180℃ X168h	150±2°C X168h	100±2°C X168h	120±2°C X168h
	Strength 变 Rate max	%	11	8	6	9	11	7
	Elongation Rate of change max	%	-9	-8	-7	-12	-11	-6
Low-temperature impact embrittlement temperature		-40℃	Pass	Pass	Pass	Pass	Pass	Pass
Volume resistivity 20°C		Ω. m	4.3 X10¹¹	8.3X10¹¹	7.8X1011	7.1X10¹¹/3.1 X10¹³	6.2 X10¹¹	5.2 X10¹²
Strength of intervention		MV/m	25	28	26	26	27	28
smoke dense degree	Flameless	--	313	246	-	323/-	338	332
smoke dense degree	There is a flame	--	79	68	-	87/-	88	90
Oxygen index		%	34	38	28	30/26	28	36
PH value		-	5.5	5.4	5.6	5.6	5.8	5.8
electrical conductivity		μs/mm	1.9	1.3	1.4	1.5	1.5	1.7
Shore HA		-	96	94	96	94	92	95

Processing technology

Processed by general extruder, L/D≥20, the recommended setting temperature of each extruder is as follows

Zone	District 1	2nd arrondissement	3rd arrondissement	4th arrondissement	5th arrondissement	Die head
Temperature °C	120	130	140	150	155	150

Marking, packaging, transportation and storage

Packing: (25.0±0.2) kg bag, polyethylene film inner bag, woven bag or kraft paper composite bag outer packaging, or other packaging quality (weight) quantity negotiated by both supply and demand;

Transportation and storage: cable materials should not be exposed to the sun and rain during transportation, and should be stored in a clean, cool, dry and ventilated warehouse.
